Metrology Machinery / Equipment
Metrology is the science of measurement. In automation, metrology machines and equipment measure or inspect a workpiece. These tools can provide you with accurate measurements, quality inspection and real-time information on the condition of your manufacturing process.
Browse the metrology machines and equipment offered by our member companies below:
Show Per Page:
DISPLAY:

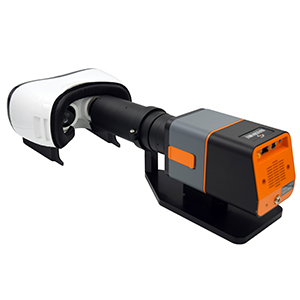

AR/VR Lens
The AR/VR Lens simulates the size, position, and field of view of the human eye for display testing in AR,
Area Color Inspection System (ACIS™)
Leveraging the visual acuity and context of imaging colorimetry, ACIS provides inspection of text and symbol formation, size, and positioning
ATOS 5
Carl Zeiss Industrial Quality Solutions, LLC
Developed for industrial use, the ATOS 5 delivers high-precision data in a short measuring time even under harsh conditions.
EMCheck® LSMZ I | EMC - Measuring clamp for leakage current
Leakage current clamp for measuring shield and leakage currents in industrial installations. Adjustable measurement range from 30 µA to 100 A across 5 Hz–1 kHz frequency range. Large 2.8 cm jaw opening and hold function support measurements in hard-to-reach installation.
EMCheck® MWMZ II | EMC - Measuring clamp for equipotential bondings
Mesh resistance measuring clamp for verifying equipotential bonding and shield loop resistance in live industrial installations.
Fast Robotic 6-Axis Motion and Automation Platform - Hybrid Kinematics
The F-690 is a high-performance 6-axis motorized robotic positioning stage and automation platform, designed for advanced automation tasks that demand
FPD Conoscope Lens
The FPD Conoscope lens captures a full cone of view angle data in a single measurement to ±70 degrees for
High Speed Linear Module, Direct Drive, High Performance Actuators
PI introduces two new affordable direct-drive linear modules that can be operated as high load stages or linear actuators.
High-Performance Linear Stage for Precision Automation, Semiconductor & Photonics Applications
PI’s new V-574 ultra-precise linear motor stages are well-suited for industry and research with applications in scanning, measuring, imaging

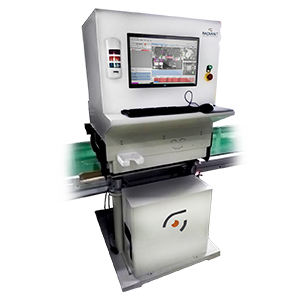

INSPECT.assembly Automated Visual Inspection Station
INSPECT.assembly™ system is a turnkey inspection station that evaluates device assemblies to detect subtle defects that may be missed

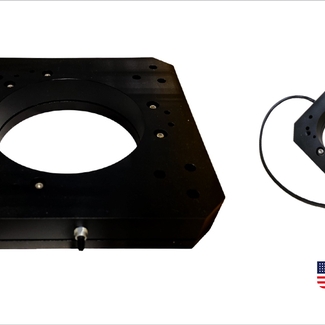

Large Aperture Optical Phase Shifters with Tip-Tilt Correction
The US-manufactured S-312 piezo phase shifters are available with five aperture diameters ranging from Ø2" (53mm) to Ø12" (311mm) .
Linear Module for Precision Industrial Automation, Motion and Positioning with High Force
PI's new L-812 linear modules are designed for handling systems and automation applications, providing sub-micrometer precision and high speed.
Microscope Lens
The Radiant Vision Systems Microscope Lens enables high-resolution imaging of extremely small components and features, such as individual LEDs and
NIR Intensity Lens
The NIR Intensity Lens system is an integrated camera/lens solution that measures the angular distribution and radiant intensity of 850 or 940 nm near-infrared (NIR or near-IR) emitters used in sensing applications, evaluating +/- 70 degrees in a single image.
PM-HL™ Headlamp Evaluation Module for ProMetric® Software
PM-HL Software relies on industry standard test specifications to enable accurate evaluation of automotive headlamp beam patterns.
PM-KB™ Illuminated Keyboard Testing Software
PM-KB Software performs automated visual inspection of backlit keyboards and keypads for character luminance and chromaticity, placement, and defects.

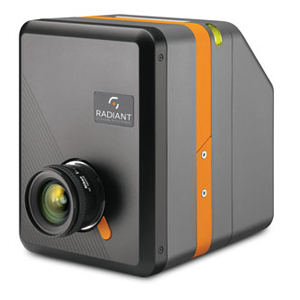

ProMetric® I Imaging Colorimeter
ProMetric I family of imaging colorimeters is designed to address the demands for high-volume manufacturing of displays, backlit components

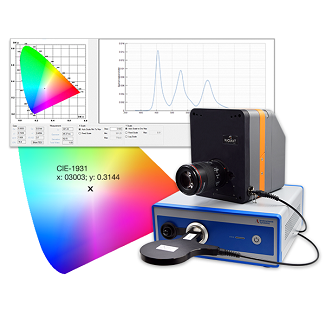

ProMetric® I-SC: Imaging Colorimeter & Spectrometer
The new ProMetric® I-SC Solution provides a single measurement solution for spectral data capture, calibration, and imaging colorimetry for comprehensive measurement of displays and light source
ProMetric® Light Measurement and Analysis Software
ProMetric® Software provides equipment control, data acquisition and image analysis capabilities for Radiant's line of ProMetric® Imaging Colorimeters and Photometers.
ProMetric® Y Imaging Photometer
ProMetric Y is a family of award-winning, high-performance imaging photometers used to evaluate displays, backlit components, and light sources.
ProSource® Near-Field Output Light Measurement Software
ProSource Software enables optical system designers to fully exploit Radiant Source Model files (RSMs) and complete ray sets of light
SIG-400 (Source Imaging Goniometer®)
SIG-400 (Source Imaging Goniometer®, Gen. 4) is a fully automated, computer-controlled goniometric system designed specifically to meet the needs of LED researchers, developers, manufacturers, and users for LED die and device characterization.
SmartRay's JOSY 3D Weld Inspection
SmartRay's JOSY uses combined hardware and software packages that utilize 3D sensors with an advanced algorithmic process
