Fast Robotic 6-Axis Motion and Automation Platform - Hybrid Kinematics

The F-690  is a high-performance 6-axis robotic positioning stage and automation platform, designed for advanced high-precision automation tasks that demand high speed, accuracy, and reliability.

Low-Profile 6-DOF Architecture for High Dynamics and Repeatability

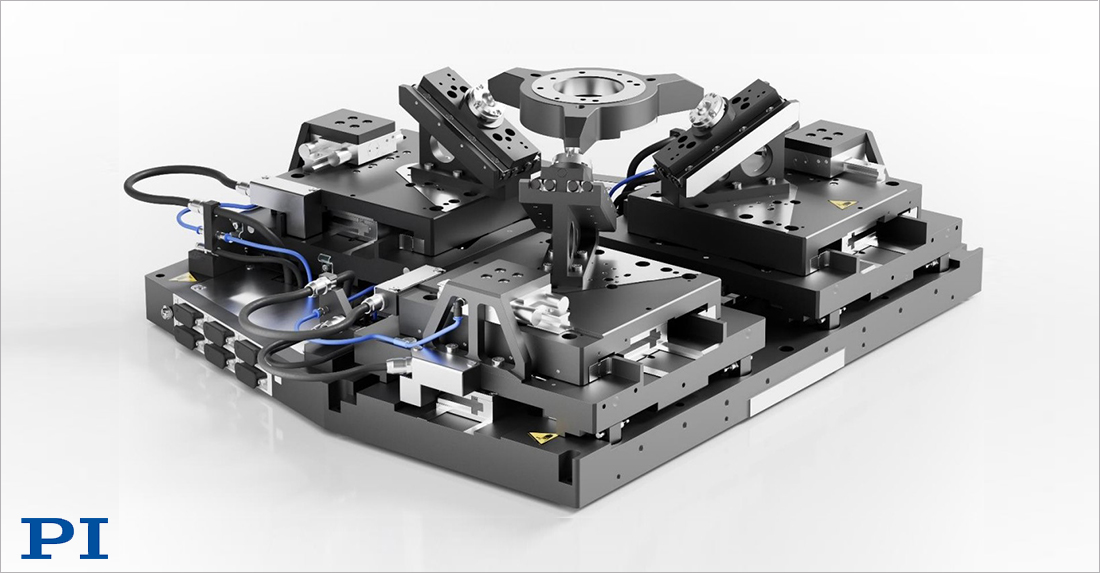

The F-690 is built on a unique hybrid kinematic design featuring three symmetrically arranged XY nanopositioning stages with direct-drive linear motors and cross-roller bearings. Each stage supports a linear bearing mounted on a wedge with ball-joint connections, enabling full 6-degree-of-freedom motion (X, Y, Z, pitch, yaw, roll) with smooth coordination and minimal mechanical crosstalk.

Absolute encoders provide 1 nanometer resolution, while pneumatic brakes ensure positional safety during power loss. The compact, low-profile system supports payloads up to 2kg and is capable of operating in inverted orientations, making it ideal for space-constrained or vertically integrated setups.

Integrated Electronics for Real-Time Precision Motion Control and Coordinate Transformation
At its core, the SpaceFAB features an ACS-based SPiiPlusEC motion controller with ultra-low-jitter NanoPWM drives and 24-bit A/D converters. This platform enables fast, precise motion with high dynamic range and minimal noise. The controller handles inverse kinematics internally and supports Cartesian commands for simplified system integration.

Features like software-defined pivot points ("Pivot Anywhere") make the F-690.S1 adaptable to a wide range of automation tasks — from micro-assembly and PIC component testing to high-precision metrology — where multi-axis accuracy and throughput are critical.

General Purpose 6DOF Automation Plus Alignment Routines for Production-Scale Throughput
In addition to its general purpose 6DOF performance and programmability, the motion controller of the robotic platform comes preloaded with a comprehensive suite of high-speed optics and photonics alignment routines, including:

• Fast Meander and Spiral Scans for efficient area-based signal acquisition and device characterization
• Multi-Axis Gradient Search for rapid signal optimization across multiple degrees of freedom
• PILightningFast First Light Search, an optional feature delivering first-light detection over a 500x500µm² area in just 0.3 seconds

These routines enable full-area spiral scans of 100×100µm² and 500×500µm² in as little as 0.3 seconds and 2 seconds, respectively. After first light detection, search gradient convergence occurs in just 0.3 seconds, supporting both coarse acquisition and fine optimization with unmatched efficiency.

Precision Specifications

• Travel Range: Range: XY: 50mm, Z: 25mm, Rotational: Theta X / Y: 15°; Theta Z: 30°
• Max Speed: 500mm/s (linear), 100°/s (rotational)
• Minimum Incremental Motion (MIM): 10nm / 2 µrad
• Repeatability: ±50nm (XY), ±75nm (Z), ±2 µrad (rotational)
• Sensor Resolution: 1nm

Flexible Tooling and Integration
The F-690.S1 SpaceFAB 6-DOF motion platform and alignment system is available with optional fiber and fiber array holders (model F-690.A1), featuring reversible fixture mounts for single fiber or array alignment. All necessary cables and accessories for controller connection are included.

Industries Served
Optimization of high-throughput processes in fields such as PIC, photonics, metrology, semiconductor test, micro-assembly, and optics.
