Konica Minolta Sensing Americas Product
PM-HL™ Headlamp Evaluation Module for ProMetric® Software
Model: PM-HL
PM-HL Software relies on industry standard test specifications to enable accurate evaluation of automotive headlamp beam patterns.
ProMetric® Software provides equipment control, data acquisition and image analysis when used with ProMetric Imaging Photometers and Colorimeters. Together, this combination provides rapid and accurate measurement of luminance and color for a broad range of light sources, displays, backlit components, and optical materials.

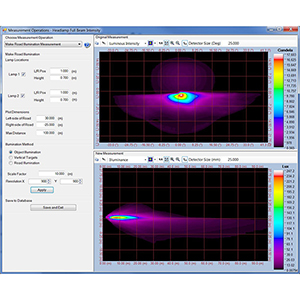

PM-HL is a headlamp evaluation module for ProMetric Software that enables accurate evaluation of headlamp beam patterns. It also permits conversion of headlamp beam patterns into roadway illumination distributions. A typical PM-HL system consists of:
- ProMetric Imaging Colorimeter or Photometer
- PM-AC4001 Metal Halide Illumination Calibration Lamp
- PM-HL software
Benefits:
- Quickly and economically qualify the illuminance, chromaticity and color temperature of lighting products versus lighting regulations or alternative lamps
- Enjoy lower capital investment and reduced measurement expense than with goniometric methods
- Eliminate the need for a 25 meter dark room
- Provide finely-resolved, quantitative and graphical analysis
Typical Applications:
PM-HL enables accurate evaluation of headlamp beam patterns and converts headlamp beam patterns into roadway illumination distributions.
- Light source illuminance distribution measurement
- Evaluation of ECE and US regulated test points
- Evaluation of custom test points
- Evaluation of beam pattern cut-off gradients
- Conversion to luminous intensity distribution
- Conversion to roadway illumination distribution
