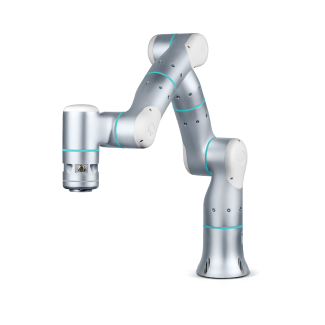

Rizon 4s

Building on the success of the Rizon 4, the Rizon 4s offers enhanced sensitivity for tasks that demand absolute precision.

Maintaining the same human-inspired design with seven degrees of freedom, the 4s features a greater reach and an additional 6DoF force/torque flange mounted sensor.

This enhances fine force sensing, control, and disturbance rejection, enabling precise multi-contact force control for delicate tasks like FPC/FFC insertion or micro-component placement, where high repeatability and end-effector feedback are crucial.

Bringing a level of ‘touch’ that surpasses that of a human, coupled with the flexibility to be mounted at any angle or on an AMR/AGV platform, the Rizon 4s unlocks new possibilities in automation.

For maximum user convenience, Flexiv offers two programming options:

• Flexiv Elements, a drag-and-drop, function-based visual programming system designed for ease of use.
• The Robot Development Kit (RDK), a powerful tool for advanced programmers looking to harness their coding expertise.

With a wide range of pre-programmed ‘primitive’ function blocks, tasks such as contour tracking, grasping, component insertion, screw fastening, and other complex automation tasks can be programmed in minutes instead of days.

This allows you to focus on what truly matters: maximizing uptime and productivity.

Technical Specifications:

• Axis/ Degrees of freedom: 7
• Force Sensing Resolution: Down to 0.05 N
• Assembly Accuracy: 10 microns (0.01 mm)
• Repeatability: +/- 0.05 mm
• Payload: 4 kg
• Reach: 919 mm
• Protection rating: IP65
• Inherently safe, Rizon is fully CE & ETL certified.

Key Features

• Force-Controlled Precision: Unlike traditional position-controlled robots, Rizon's force-controlled design provides enhanced precision and responsiveness, ensuring precise and consistent performance in delicate tasks.
• Exceptional Position Tolerance: Rizon excels in task execution, even amidst positional uncertainties, accommodating manufacturing tolerances and accumulated errors on production lines.
• Outstanding Disturbance Rejection: An adaptive robot maintains peak performance despite significant environmental changes, effectively countering factors like floating bases, vibrations, and human interference.
• Versatile Transferable Intelligence: Rizon seamlessly adapts to a wide range of similar tasks, enabling quick redeployment to new applications with ease.
• Advanced 7-Axis Dexterity: This innovative design allows for unmatched agility and precision in complex environments.
• Revolutionary Sensing Technology: Proprietary force and torque sensing capabilities deliver superior accuracy, robustness, and cost-efficiency.
• Dual-Channel Redundancy: Built to ISO 13849 PL=d and 10218 standards, a Rizon series adaptive robot ensures industrial safety with a torque-based control framework for safe interaction in unpredictable environments.
• Hierarchical Intelligence System: Powered by advanced AI and robotics algorithms, Rizon offers sophisticated perception, force-guided manipulation, and flexible task planning with real-time adaptability.
