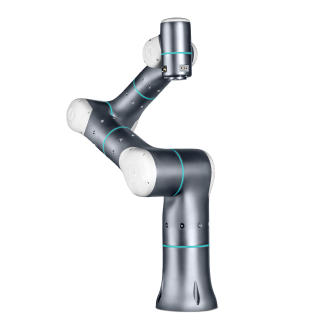

Rizon 10

Introducing the Rizon 10, an adaptive robot that’s built to handle bigger challenges. Designed with a payload capacity of 10 kg and an impressive reach of 941 mm, the Rizon 10 is designed for tasks that require a combination of strength and precision.

From industrial material abrasion tasks, to dual mounted AMR solutions to lift heavy parts, the Rizon 10 is the ultimate combination of strength and sensitivity.

Like its predecessors, the Rizon 4 and 4s, the Rizon 10 features a human-inspired design with seven degrees of freedom, offering unmatched flexibility and control.

With an enhanced payload capacity and an extended reach over its predecessors, the Rizon 10 is ideal for applications that require heavier end-of-arm tools such as grinders or polishers.

Able to be mounted at any angle or integrated on to an AMR/AGV platforms, Flexiv’s Rizon 10 seamlessly integrates into your workspace, unlocking new automation opportunities.

For maximum user convenience, Flexiv offers two programming options:

• Flexiv Elements, a drag-and-drop, function-based visual programming system designed for ease of use.
• The Robot Development Kit (RDK), a powerful tool for advanced programmers looking to harness their coding expertise.

With a wide range of pre-programmed ‘primitive’ function blocks, tasks such as contour tracking, grasping, component insertion, screw fastening, and other complex automation tasks can be programmed in minutes instead of days.

This allows you to focus on what truly matters: maximizing uptime and productivity.

Technical Specifications:

• Axis/ Degrees of freedom: 7
• Force Sensing Accuracy: 0.2 N
• Force Control Tracking Accuracy: 0.5 N
• Repeatability: +/- 0.05 mm
• Payload: 10 kg
• Reach: 941 mm
• Protection rating: IP65
• Inherently safe, Rizon is fully CE & ETL certified.

Key Features

• Force-Controlled Precision: Unlike traditional position-controlled robots, Rizon's force-controlled design provides enhanced precision and responsiveness, ensuring precise and consistent performance in delicate tasks.
• Exceptional Position Tolerance: Rizon excels in task execution, even amidst positional uncertainties, accommodating manufacturing tolerances and accumulated errors on production lines.
• Outstanding Disturbance Rejection: An adaptive robot maintains peak performance despite significant environmental changes, effectively countering factors like floating bases, vibrations, and human interference.
• Versatile Transferable Intelligence: Rizon seamlessly adapts to a wide range of similar tasks, enabling quick redeployment to new applications with ease.
• Advanced 7-Axis Dexterity: This innovative design allows for unmatched agility and precision in complex environments.
• Revolutionary Sensing Technology: Proprietary force and torque sensing capabilities deliver superior accuracy, robustness, and cost-efficiency.
• Dual-Channel Redundancy: Built to ISO 13849 PL=d and 10218 standards, a Rizon series adaptive robot ensures industrial safety with a torque-based control framework for safe interaction in unpredictable environments.
• Hierarchical Intelligence System: Powered by advanced AI and robotics algorithms, Rizon offers sophisticated perception, force-guided manipulation, and flexible task planning with real-time adaptability.
