Neuromorphic Embedded Vision and the Miracle of iCub

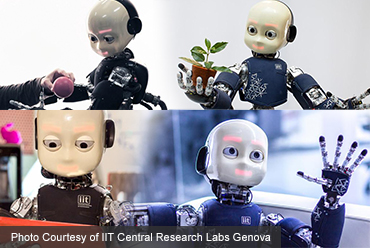

iCub is a humanoid robot developed by the Italian Institute of Technology that leverages neuromorphic embedded vision to help it see. It has been adopted by more than 20 labs worldwide. iCub has the appearance of a small child and has 53 motors that move its head, arms, hands, waist, and legs. In addition to being able to see, it can hear. It moves with the assistance of accelerometers and gyroscopes. Even a capacitive skin system is being added that will measure contact and implement safe grasping strategies.
The embedded vision system designed for iCub is inspired by the biology of the mammalian visual system. Stimulus-driven sensors, a dedicated embedded processor, and an event-based software infrastructure for processing visual stimuli make up the system. The components are being integrated with machine vision modules. High resolution, color, frame-based vision, and neuromorphic low redundancy combine to complement one another.
Embedded Vision vs. Biology
Mainstream embedded vision uses digitized frames, obtained by sampling at a regular fixed rate and processing sequences of snapshots. The data transfer, storage, and processing require a lot of time and CPU performance. Tasks that are simple for animals, such as object characterization, motion estimation and direction of attention require vast amounts of computing resources in this model. Another problem with this model is that what is sensed is noisy and ambiguous.
Certified System Integrator Program
Set Yourself at the Forefront of the Global Vision Market
.jpg)
Vision system integrators certified by A3 are acknowledged globally throughout the industry as an elite group of accomplished, highly skilled and trusted professionals. You’ll be able to leverage your certification to enhance your competitiveness and expand your opportunities.
The biological nervous system’s computation is stimulus-driven. Neural computation occurs to enhance variations and discontinuities and discard redundancies. Typical machine vision systems do not have these capabilities. So researchers looked to biological systems for ideas on how to take advantage of brain-like sensing and computation. Robots like iCub will need these functions to interact with the world in real time and act autonomously.
Researchers Develop Solutions
The use of asynchronous vision offers an advantage in robust and adaptive signal encoding. It also allows for efficient operation in differing environments and conditions (e.g. lighting conditions, fast-moving objects). The use of sparser temporal and spatial information leads to faster and lighter computation, also resulting in lower power consumption.
The form of a sophisticated humanoid challenges vision systems with complex tasks and movements, such as turning the head or torso. At the hardware level, researchers integrated cameras, a custom processor, and FPGA (field-programmable gate array). For software, they developed basic processing modules required for development, evaluation, and debugging of asynchronous artificial vision algorithms.
The iCub’s asynchronous visual system on its open source platform is the key to validating the neuromorphic approach and making its advantages available to a wide community.
