Intercon 1 - A Division of Nortech Systems, Inc. Product
Intercon 1 is a major international supplier of cable and assemblies located in the US. Products ship to to more than 18 countries through our 38 distribution channels. This global distribution network provides the medical, scientific, industrial and security markets with Camera Link®, Gig E Vision™, USB, Firewire, Infiniflex, Interflex, Laser, LVDS, CCD cable and assemblies. Products include, cable, cable assemblies, power supplies, OptiLink Fiber optic extenders and accessories.
Product filed under:
Cables, Enclosures & Ancillary Products, and Camera Link Cables, Enclosures & Ancillary Products, and Camera Link

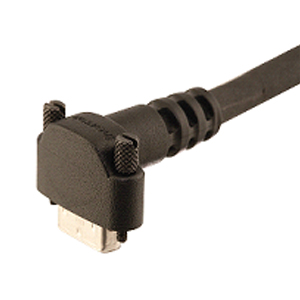

High Flex Right Angle Certified Camera Link
Model: CLCP*-xx-P
Intercon 1's high performance right angle Camera Link cable increases versatility and resilience in restricted space applications. The unique right angle overmolding available in up, down, left and right orientations allows for immediate turns behind the interface that are specific to your application needs eliminating the need for minimum bend radius concerns. The high flex cable construction adheres to the Camera Link specifications and performs with a projected flex life of over 1 million flex cycles. Independent testing of the assembly has surpassed 5 million flex cycles. FEATURES: Robust high flex cable 360-degree shielding Durable over-molding Right angle interface in up, down, left and right configurations RoHS compliant Jacket Color: Black UL/CSA Rated: Yes Min. Bend Radius: 3.75 Inches Max Temperature: 80 degrees Celsius Flame Rating: FT-1 Overall Diameter: 0.375 Primary Components: Cable: 11 Individually Shielded Twisted Pairs Connector A: 26 Pos MDR Plug Connector B: 26 Pos MDR Plug
