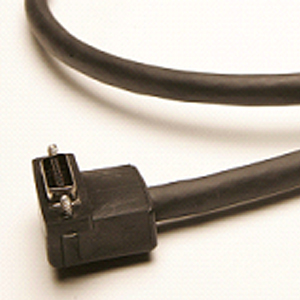

Certified Low Profile Right Angle Camera Link
Model: CLCP-xx-PLx
This high flex Camera Link cable features a low profile right angle overmold for superior strain relief in restricted space applications.Fabricated with Intercon 1 high performance Camera Link cable, these assemblies offer the same dependability and robustness of our straight configurations in a unique design that allows for immediate turns and offers increased versatility. The height of the overmold is a small .67 inches, allowing for use in the most restricted spaces. Configurations are available with the right angle orientated up or down Features • Low Profile right angle overmolded strain relief • Thumbscrew locking • High Flex cable design • Certified Camera Link product • RoHS Compliant Cable Specifications • Overall Diameter: .375 Inches • Max Temperature: 80 Degrees C • Jacket Color: Black • UL/CSA Rated: Yes • Min. Bend Radius: 3.75 Inches • Flame Rating: FT-1 Primary Components • Cable: 11 Individually Shielded Twisted Pairs • Connector A: 26 Pos MDR • Connector B: 26 Pos MDR
