Intercon 1 - A Division of Nortech Systems, Inc. Product
Intercon 1 is a major international supplier of cable and assemblies located in the US. Products ship to to more than 18 countries through our 38 distribution channels. This global distribution network provides the medical, scientific, industrial and security markets with Camera Link®, Gig E Vision™, USB, Firewire, Infiniflex, Interflex, Laser, LVDS, CCD cable and assemblies. Products include, cable, cable assemblies, power supplies, OptiLink Fiber optic extenders and accessories.
Product filed under:
Cables, Enclosures & Ancillary Products, and Camera Link Cables, Enclosures & Ancillary Products, and Camera Link

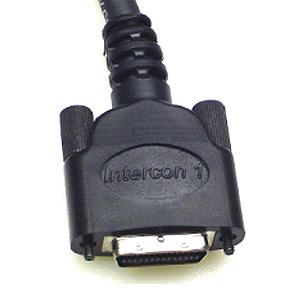

Economy Camera Link
Model: ECLP-xx-P
Product Outline Developed as a mid range flex life cable these assemblies have been validated for applications of up to 5 million flexes. This series features overmolded connectors for high quality strain relief as well as thumbscrew locking. Standard lengths of these assemblies are in stock and available to ship. Main Product Specifications: Features • Lower cost alternative to high flex (5 million +) assemblies • Overmolded strain relief • 4/40 Thumbscrews • Assemblies available from stock. Cable Specifications • Overall Diameter: .352 Inches • Max Temperature: 80 Degrees C • Jacket Color: Black • UL/CSA Rated: Yes • Min. Bend Radius: 5.28 Inches • Flame Rating: vw-1 Primary Components • Cable: 11 Individually Shielded Twisted Pairs • Connector A: 26 Pos MDR • Connector B: 26 Pos MDR • Optional: 26 Pos SDR
