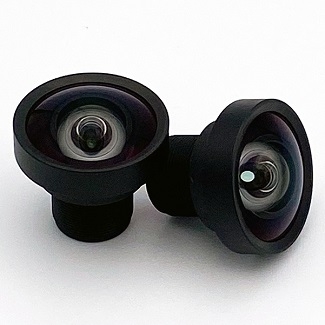

1/1.9" 4K+ 127° Wide-Angle No-Distortion M12 Lens | 2.2mm CIL023

Model: CIL023-F2.2-M12A650, CIL023-F2.2-M12ANIR

Commonlands LLC

Request a Quote

The CIL023 is a 2.2mm F/2.2 wide-angle M12 lens which provides a 125° Diagonal Field of View on 1/2.3" sensors. This lens is rated for 8MP+ and is one of the lowest distortion 120°+ M12 lenses on the market.

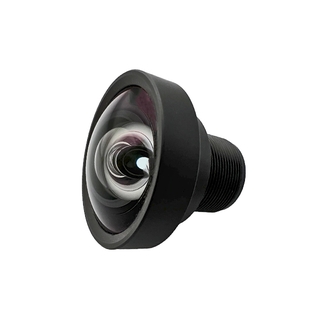

Image of 1/1.9

Lens Parameter Performance Detail

Part Number     CIL023

Format Type      1/1.9"

EFL                        2.2mm

F#                          2.2 Fixed

Resolution          8MP+

Field of View     112° @ 6.2mm

                               Calculate using our FoV Calculator

Image Circle      8.5mm

Distortion           <5% TV

Weight                9.3g

Construction     Hybrid Glass/Plastic, with AL6061 Barrel

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

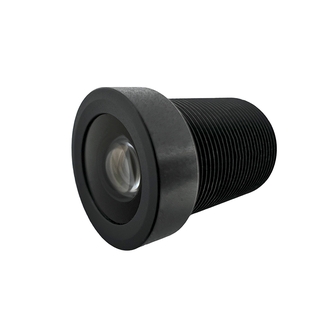

12MP 8mm M12 Lens for up to 2/3
