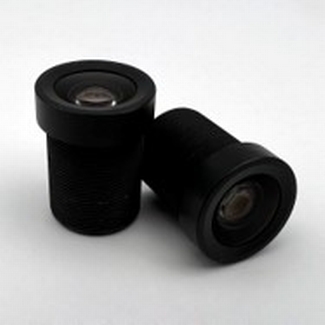

7.8mm Ingress Protected M12 Lens
Model: CIL079-F2.0-M12A650, CIL079-F2.0-M12ANIR
The CIL079 is an automotive grade 8mm M12 Lens which is suitable for up to 2MP-3MP 1/2" sensors.
Ingress Protected 7.8mm M12 Lens
The CIL079 is an automotive grade 8mm M12 Lens which is suitable for up to 2MP-3MP 1/2" sensors. This all-glass lens is IP67 and is optimized for thermal stability + stray light, making it great for exposed applications.
Good Stray Light: A design optimized for stray light is great for computer vision.
Athermalized: Compatible with operational temperatures from -30C to 75C.
IP67 Rated: IP67 rated for the toughest environments.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL079 |
| Format Type | 1/2.5" |
| EFL | 7.9mm |
| F# | 2.0 Fixed |
| Resolution | 2MP-3MP |
| Field of View | 44° @ 6.0mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 8.0mm |
| Distortion | <5% TV |
| Weight | 5.7g |
| IR Cut-Off Filter | P/N With: CIL079-F2.0-M12A650 P/N Without: CIL079-F2.0-M12ANIR |
| Construction | All Glass with Aluminum Barrel |
Other Products from Commonlands LLC

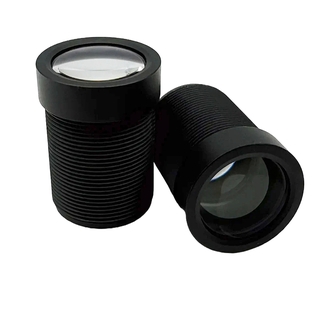

1/2.5 inch 18mm Telephoto M12 Lens
The CIL178 is an 18.4mm M12 Lens for up to 2MP 1/2.5" sensors. The short TTL and low F/2.0 make this lens fit into a unique optical design space. Short TTL TTL of 20mm is great for a compact telephoto camera design.

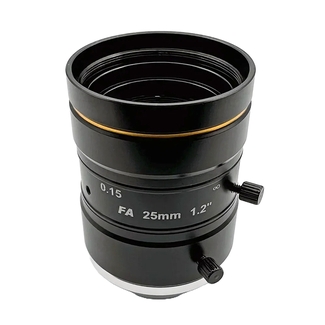

25mm C-Mount Lens
The CIL554 is a 25 mm C-Mount lens for up to 25MP 1.2" sensor format type with pixel pitch
