The CIL219 is a 1.9mm miniature fisheye lens which provides a 200° Field of View at 6.3mm Image Circle.
200°@6.3mm Fisheye M12 Lens
The CIL219 is a 1.9mm miniature fisheye lens which provides a 200° Field of View at 6.3mm Image Circle. The lens is IP67 sealed, athermalized, all-glass, all-metal, with two molded glass aspheric elements.
>200° FoV: Maximize your camera's viewing angle with a large 6.3mm image circle.
Molded Glass Aspheres: All-glass all-metal design, with two glass aspheres for amazing performance to the edge.
IP67: IP67 rated for dust and water resistance combined with thermal stability.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL219 |
| Format Type | 1/2.3" to 2/3" |
| EFL | 1.9mm |
| F# | 2.5 Fixed |
| Resolution | 12MP+P |
| Field of View | 200° @ 6.3mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 6.3mm |
| Distortion | -5% F-Θ |
| Weight | 13.4g |
| IR Cut-Off Filter | P/N With: CIL219-F2.5-M12A650 P/N Without: CIL219-F2.5-M12ANIR |
| Construction | All Glass, Metal |
Other Products from Commonlands LLC

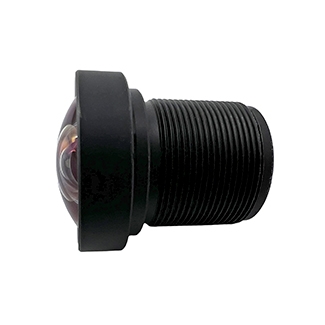

3mm M12 Lens Low Distortion
The CIL027 is a 2.7mm wide-angle low-distortion M12 lens which provides a 99° Horizontal Field of View on 1/2.3" sensors. Wide-Angle FoV: Achieve a wide 100° HFoV on 1/2.3" type sensors. Thermal Stability: Optical Resolution suitable for IMX178.

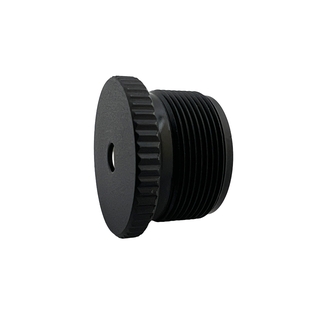

1/2.3 inch Low Distortion 7.2mm M12 Lens
