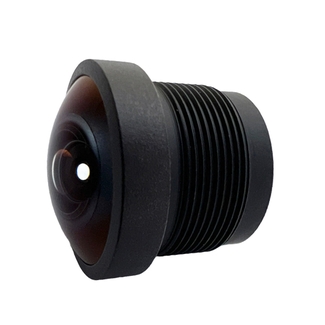

2/3 inch, 2.2mm Miniature Fisheye M12 Lens
Model: CIL222-F2.0-M12A650, CIL222-F2.0-M12ANIR, CIL222-F4.0-M12A650
The CIL222 is a 2.2mm M12 lens which provides a 188° Field of View at 6.6mm image circle.
188°@6.6mm IP67 M12 Fisheye
The CIL222 is a 2.2mm M12 lens which provides a 188° Field of View at 6.6mm image circle. The lens is all-glass all-metal, is IP67 sealed, and suitable for 2MP-5MP sensors such as the AR0234.
All Glass All Metal: Thermal Stability resulting from All-Glass All-metal lens construction.
IP69K Rating: Expose the lens directly to the elements for exterior applications.
Miniature Size: The 16.7mm TTL makes this lens great for miniature applications.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL222 |
| Format Type | Up to 2/3" Circular Fisheye |
| EFL | 2.2 |
| F# | 2.0 Fixed |
| Resolution | 5MP |
| Field of View | 167° @ 6.0mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 6.6mm |
| Distortion | -9% F-Θ |
| Weight | 4.8g |
| IR Cut-Off Filter | P/N With: CIL222-F2.0-M12A650 P/N Without: CIL222-F2.0-M12ANIR |
| Construction | All Glass, Aluminum |
