What is Thermal Imaging?

Thermal imaging cameras are enormously important in a wide variety of environments. In addition to being used in first response settings, thermal imaging expands the range of tasks a robotic device can perform in high-risk environments or during emergencies.

Let’s take a look at some of the “hot” topics around thermal imaging and its uses.

What is Thermal Imaging?

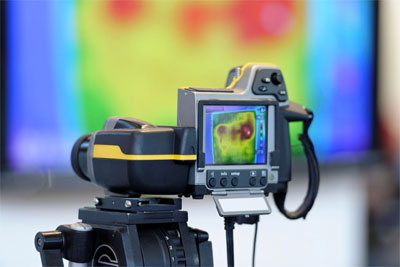

Thermal imaging cameras effectively translate heat - that is, thermal energy - into visible light to analyze surroundings. This makes them very versatile. Living things and mechanical equipment put out heat, making them visible to thermal devices even in the dark. These cameras can be very precise, requiring only a small amount of heat to work effectively.

How Does Thermal Imaging Work?

Visible light is extremely useful to humans and other creatures, but it’s only a small part of the electromagnetic spectrum. Infrared radiation, the kind produced by heat, takes up more “space” in the spectrum. The interplay of heat being absorbed, reflected, and sometimes even transmitted is what thermal imaging cameras capture and evaluate.

The level of thermal radiation emitted by an object is called its heat signature. The hotter a given object is, the more radiation it will spill into the environment. The thermal imager is capable of distinguishing heat sources and very small differences in thermal radiation. It compiles this data into a complete “heat map” distinguished by heat levels.

What is Thermal Imaging Used For?

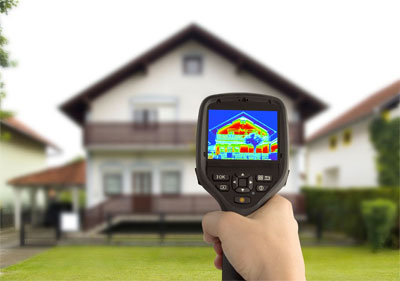

Thermal imaging cameras have been used since the Korean War and were originally used for scouting and combat at night. Since then, they’ve been improved upon to be used by firefighters, electricians, law enforcement officers, and rescue teams in disaster areas. They are also used extensively in building inspection, maintenance, and optimization.

How is Thermal Imaging Implemented?

Related Blog Articles

Embedded Vision Systems are a Key Component in ADAS for Automobiles

Read

Using Line Scan Cameras or Frame Cameras: Solving the Pixel Puzzle

Read

Thermal imaging can be a compact and efficient technology. The simplest thermal cameras evaluate heat sources centered within a single pair of crosshairs. More sophisticated systems provide multiple points of comparison so users can analyze environmental conditions. Camera palettes vary widely, from monochrome to a full “rainbow” palette.

What Should You Look for in a Thermal Imaging Device?

Exactly what you need from your thermal imager depends on the environment you use it in. However, there are two areas that serve as key quality differentiators for thermal imaging cameras: detector resolution and thermal sensitivity.

As with many other displays, the resolution describes the total number of pixels – for example, a 160x120 display is composed of 19,200 pixels. Each individual pixel has thermal data associated with it, so larger displays produce clearer imagery.

Thermal sensitivity is the threshold of difference the imager can detect. For example, if a device has 0.01° of sensitivity, it can distinguish objects with one-hundredth of a degree in temperature difference. Minimum and maximum temperature ranges are also important.

There are some basic limitations of thermal imagers: For example, they cannot see through glass because of the reflective properties of the material. They can also see into, but not through, walls. Despite this, thermal imaging has proven to be useful in many applications.
