Vision Systems
Vision systems identify, inspect, and communicate critical feedback data on your mechanical devices. They consist of one or more sensors or cameras, a processing element, and analysis software. The software provides parameters that you define based on your automation project's goal to collect information and apply feedback for your devices.
Vision systems can be simple, sensor-based configurations or complex, multi-camera operations designed to capture and assess multiple characteristics at the same time.
Use vision systems to capture all of the valuable feedback you need to ensure your devices are running optimally.
It can be difficult to know what vision systems to purchase without knowing what is out there.
All of the vision systems listed below were manufactured by our member companies using the latest technology available. Browse below to discover which vision system is right for your automation project.
Show Per Page:
DISPLAY:
1.8mm 4K+ 135° Wide-Angle Low-Distortion M12 Lens | CIL018
The CIL018 is a 1.8mm wide-angle M12 lens provides a 125° Horizontal Field of View on a 1/2.5" sensor. This lens is rated for 8MP+ and is one of the lowest distortion 130°+ M12 lenses on the marke
1.9mm Stereographic M12 Lens for Board Cameras
The CIL819 is a 1.9mm M12 Lens for up to 8MP+ 1/3" sensors with 160° FoV and stereographic distortion. The small size and low F# is great for drones.
1/1.7
The CIL344 is a wide-angle 4.4mm M12 lens provides 100° Horizontal Field of View on 1/1.8" sensors.
1/1.7
The CIL334 is an 8MP+ wide-angle 3.5mm M12 lens which provides a 140° Horizontal Field of View on 1/1.8" 16:9 sensors.
1/1.7
The CIL340 is a wide-angle 4.0mm M12 lens provides 111° Horizontal Field of View on 1/1.8" sensors.
1/1.7
The CIL050 is a 5mm M12 lens which provides 120° Diagonal Field of View on 1/1.7" sensors.
1/1.7" 4.4mm M12 Lens for up to 10MP sensors | CIL046
The CIL046 is a 4.4mm M12 lens which provides a 86° Horizontal Field of View on 1/1.7" sensors, with no distortion. The lens is suitable for up to 10MP 1/1.7" sensors.
1/1.7" 5.5mm M12 Lens for up to 4K+ S-Mount Cameras
The CIL056 is a 5.5mm M12 lens which provides a 64° HFoV on 1/2.3" type sensors like the IMX477. This board lens can be used on up to 1/1.7" sensors and has a small form factor.
1/1.7" 6mm M12 Lens for up to 4K+ 1/1.7" S-Mount Cameras | CIL060
The CIL060 is a 6.0mm M12 lens which provides a 55° HFoV on 1/2.3" type sensors like the IMX477. This board lens can be used on up to 1/1.7" sensors and has <1% TV Distortion.
1/1.7" 8mm M12 Lens for up to 4K+ 1/1.7" S-Mount Cameras | CIL080
The CIL080 is a 7.6mm M12 lens which provides 70° Diagonal Field of View on 1/1.8" sensors. The fast F/1.8 and 12MP+ resolution makes this lens optimal for robotics applications and surveillance cameras.

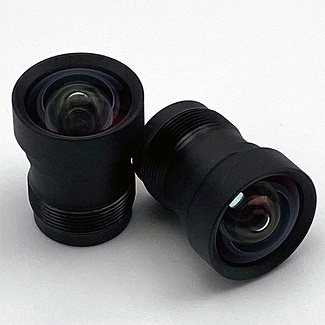

1/1.8" 16MP+ 4mm M12 Lens for up to 1/2" Sensors | CIL039
The CIL039 is a 3.9mm no-distortion M12 lens which provides a 77° Horizontal Field of View on a 1/2.3" sensor. The lens provides a wide-angle field of view suitable for computer vision applications.
1/1.8" 3.3mm M12 Lens for 14MP 1/2.3" with No-Distortion | CIL033
The CIL033 is a 3.3mm no-distortion M12 lens which provides a 88° Horizontal Field of View on 1/2.3" sensors. The 12MP+ resolution and wide-angle output makes the CIL033 ideal for drone and video conferencing applications.
1/1.8" IP67+ Low Distortion 3.2mm M12 Lens | CIL034
The CIL034 is a wide-angle no-distortion 3.2mm M12 lens suitable for 12MP+ and up to 1/1.8" sensors. This IP67+ sealed lens provides 87° HFoV on 1/2.3" sensors and is great for exterior facing applications.
1/1.9" 4K+ 127° Wide-Angle No-Distortion M12 Lens | 2.2mm CIL023
The CIL023 is a 2.2mm F/2.2 wide-angle M12 lens which provides a 125° Diagonal Field of View on 1/2.3" sensors. This lens is rated for 8MP+ and is one of the lowest distortion 120°+ M12 lenses on the market.
1/2
The CIL331 is a wide-angle 3mm M12 lens which provides 122° Horizontal Field of View on 1/2.3" sensors.
1/2
The CIL335 is a 12MP wide-angle 3.5mm M12 lens which provides a 105° Horizontal Field of View on 1/2.3" sensors.
1/2" 4.3mm M12 Lens for up to 14MP sensors | CIL043
The CIL043 is a 4.3mm M12 lens which provides a 71° Horizontal Field of View on 1/2.3" sensors, with no distortion. The lens is suitable for up to 14MP 1/2" sensors.
1/2" 7mm M12 Lens for up to 4K+ S-Mount Cameras | CIL068
The CIL068 is a 6.8mm M12 lens which provides a 50° HFoV on 1/2" type sensors like the IMX477. This board lens can be used on up to 1/2" sensors and has <1% TV Distortion.
1/2" Small 7mm M12 Lens for Board Cameras | CIL872
The CIL872 is a 7.2mm F/2.5 M12 lens which provides a 58° Diagonal Field of View on 1/2.3" sensors. This lens is rated for 5MP+ and has a compact lightweight form factor.
1/2.3" 4.5mm M12 Lens for up to 1/1.9" such as MT9P031 | CIL045
The CIL045 is a 4.5mm M12 lens which provides a 70° HFoV on 1/2.3" type sensors. This board lens can be used on up to 1/1.9" sensors and has <1% TV Distortion.
1/2.5
The CIL825 is a 2.5mm M12 lens which provides a 115° Diagonal Field of View on 1/3" sensors.
1/2.5" 6mm M12 Lens with F/1.8 for S-Mount Cameras | CIL061
The CIL061 is a 6mm M12 lens suitable for up to 3MP 1/2.5" sensors. It's <3% distortion and F/1.8 makes it great for ADAS and computer vision applications on sensors like Sony's IMX290 and AR0234.

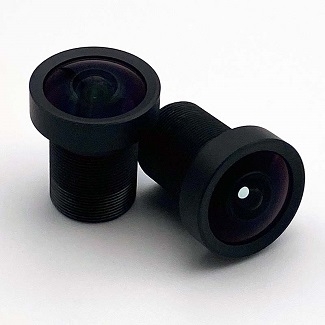

1/2.7
The CIL327 is a 8MP wide-angle 2.7mm M12 lens which provides a 125° Horizontal Field of View on 1/2.6" sensors.
1/2.7
The CIL821 is a 12MP+ 2.1mm miniature S-Mount lens which provides a 125° Horizontal Field of View on 1/2.8" sensors.
