25mm Telephoto M12 Lens for 12MP+ sensors | CIL260

Model: CIL260-F2.0-M12IR, CIL260-F2.0-M12NIR

Commonlands LLC

Request a Quote

The CIL260 is a fast 26mm M12 lens which provides a 14° Horizontal Field of View on 1/2.3" type sensors.

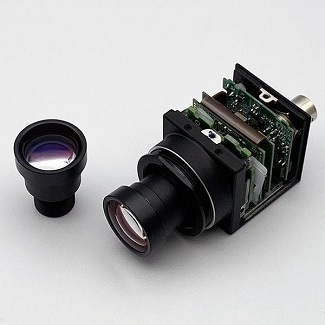

Image of 25mm Telephoto M12 Lens for 12MP+ sensors | CIL260

Lens Parameter Performance Detail

Part Number     CIL260

Format Type      2/3"

EFL                        26.0mm

F#                          2.0 Fixed

Resolution          12MP+

Field of View     14° @ 6.2mm

                               Calculate using our FoV Calculator

Image Circle      12.5mm

Distortion           <1%

Weight                15.3g

Construction     All-glass all-metal

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

1/1.7

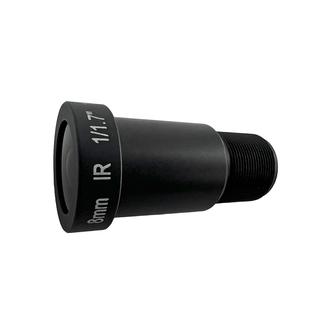

1/1.7" 8mm M12 Lens for up to 4K+ 1/1.7" S-Mount Cameras | CIL080

The CIL080 is a 7.6mm M12 lens which provides 70° Diagonal Field of View on 1/1.8" sensors. The fast F/1.8 and 12MP+ resolution makes this lens optimal for robotics applications and surveillance cameras.

Continue
S-Mount Lens with 4K+ Wide-Angle No-Distortion | 2.6mm CIL028 Image

S-Mount Lens with 4K+ Wide-Angle No-Distortion | 2.6mm CIL028

The CIL028 is a wide-angle no-distortion 2.6mm M12 lens suitable for up to 4K+ 1/2" sensors. The lens provides 100° HFoV on 1/2.3" sensors and is great for video-conferencing systems and sensors like the Sony IMX57.

Continue
