Smallest QTL motor with higher torque than the QTR series.
The QTL210 series provides more torque than the smaller QTR series. The QTL 210 is the smallest of the QTL range and is available in three heights, 65, 85 and 105 mm. It has a large inner diameter suitable to route multiple cables through, allowing flexibility in the application. It therefore suits a wide variety of markets including rotary indexing tables, printing machinery and materials handling.
Ultimate torque: 173 – 346 Nm
Peak torque: 140 – 281 Nm
Continuous torque: 65 – 142 Nm
The build heights are: 210-65 // 210-85 // 210-105
The advantages of the QTL motor series
• High voltage insulated, up to 300 VDC/600 VDC, bus voltage
• Good product repeatability
• 100% QC
• Large inner diameter
• Low stator and rotor mass
• Shielded cable with strain relief
• Low cogging value, Low total harmonic distortion (THD)
The QTL series is suitable for a variety of markets including packaging, laser cutting, rotary indexing tables, printing, and materials handling.

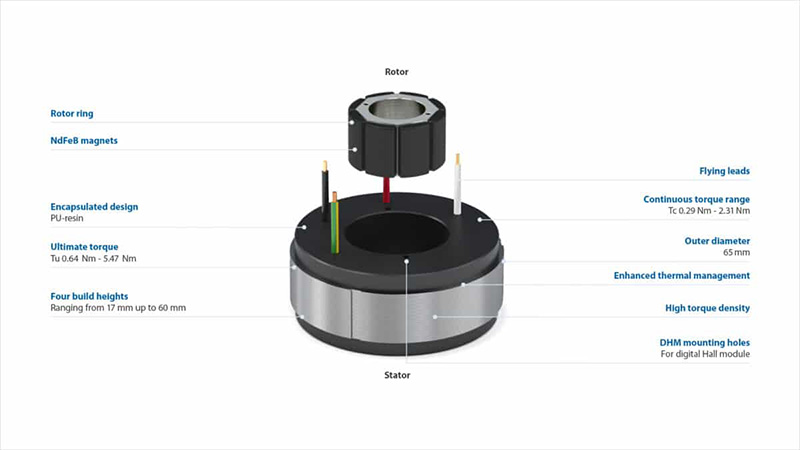

.jpg)
