The DOBOT CRA-IP68 Series is a high-protection collaborative robot built for harsh environments. With IP68 dust, water, and oil resistance
The DOBOT CRA-IP68 Series is a high-protection IP68 robot specifically designed for harsh working environments with high dust, high humidity, and high oil contamination. The product retains the excellent performance, functionality, and ease of use typical of the CRA series, while the enhanced protection level further improves the robot's adaptability and reliability in challenging environments.

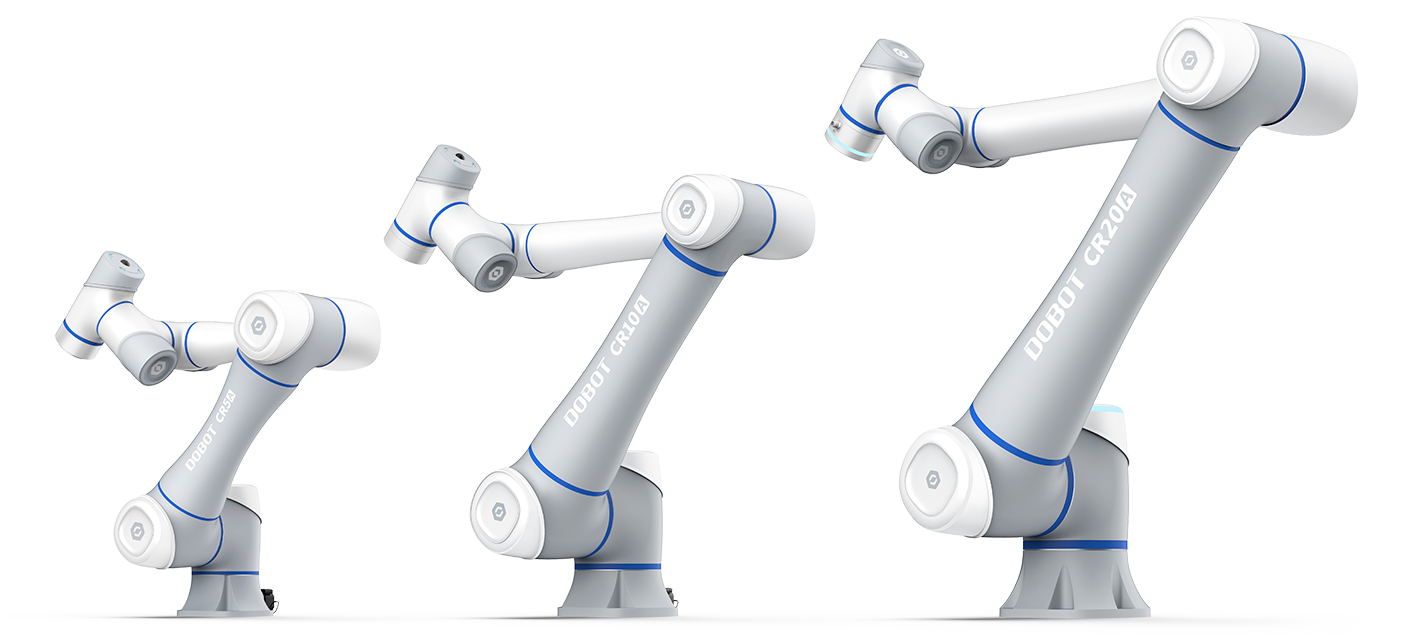

Explore Next-gen CRA-IP68 Series

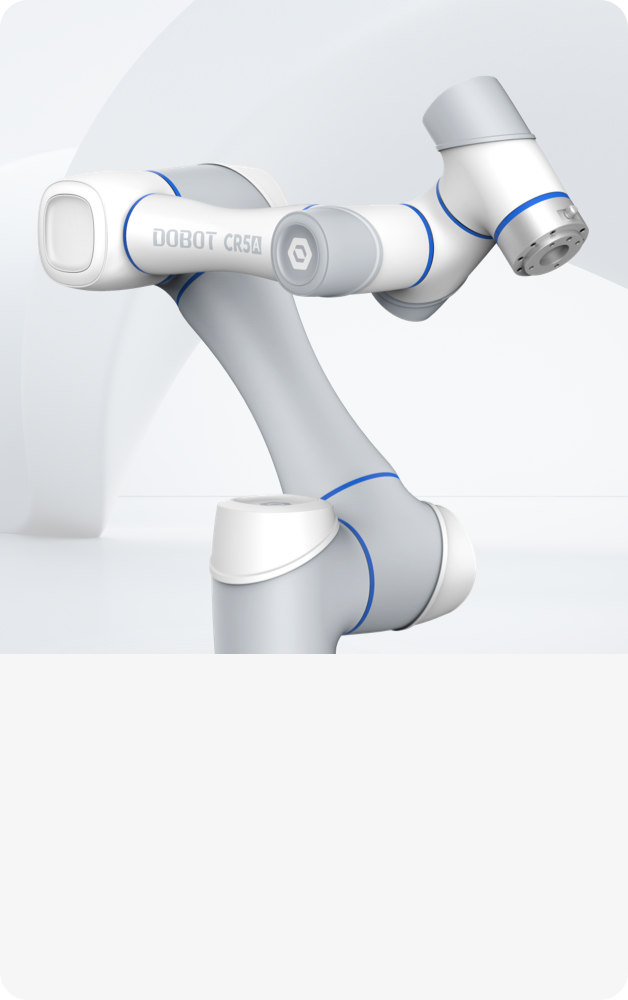

CR5AP
Max Payloads: 5kg
Working Radius: 900mm
IP Rating: IP68

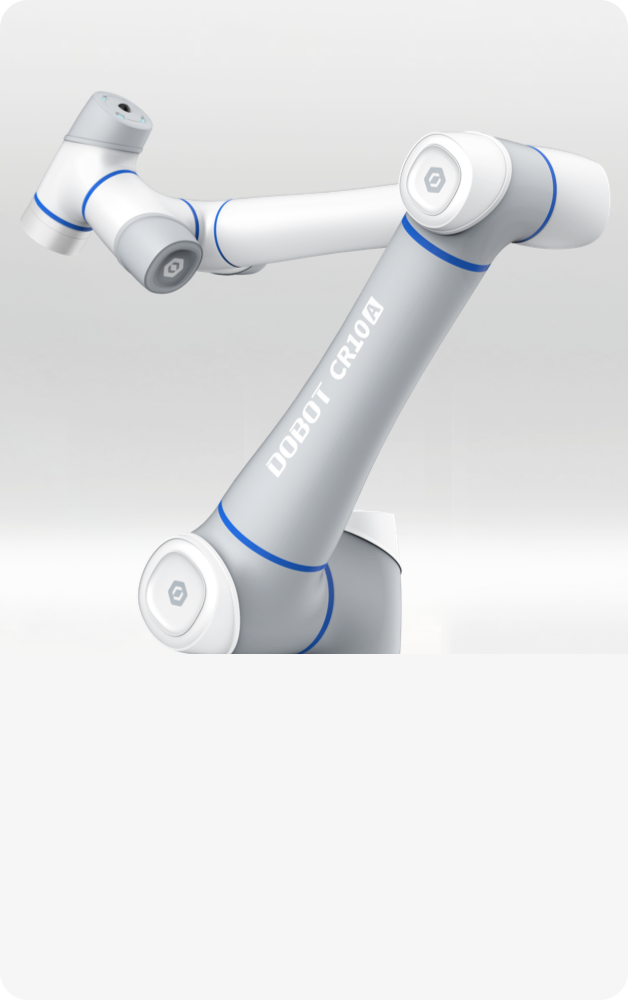

CR10AP
Max Payloads: 10kg
Working Radius: 1,300mm
IP Rating: IP68

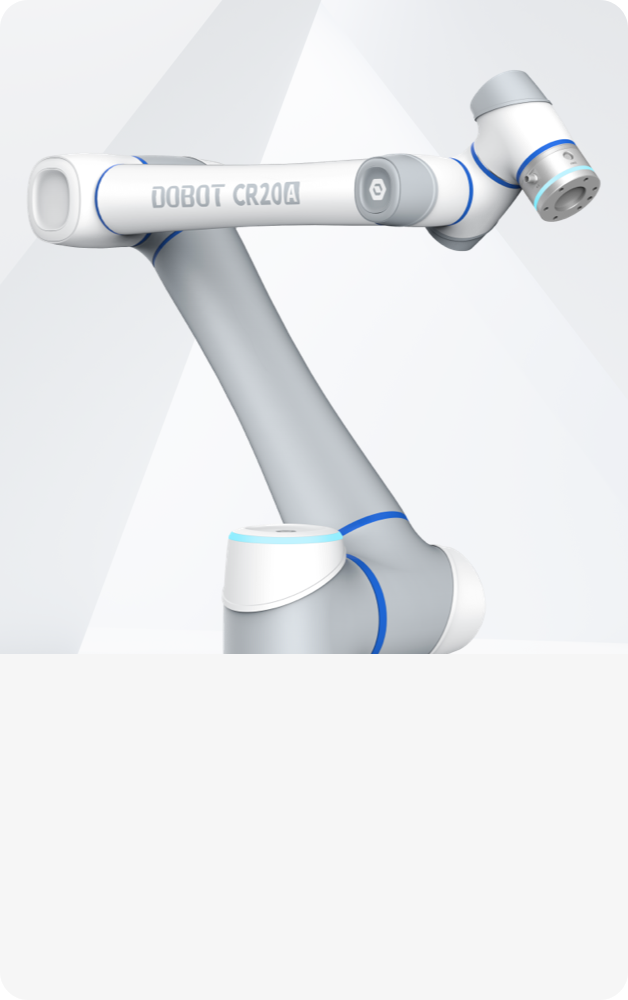

CR20AP
Max Payloads: 20kg
Working Radius: 1,700mm
IP Rating: IP68

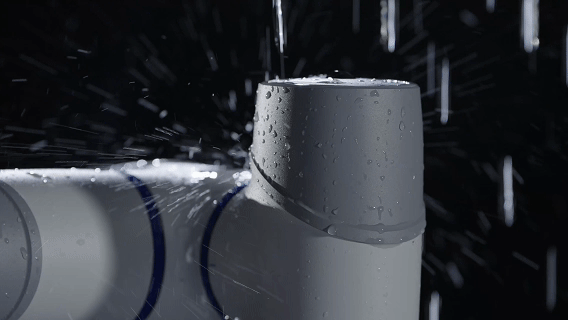

Full IP68 Waterproof Design, Ready to Master
Stand out in Complicated, Harsh Environments

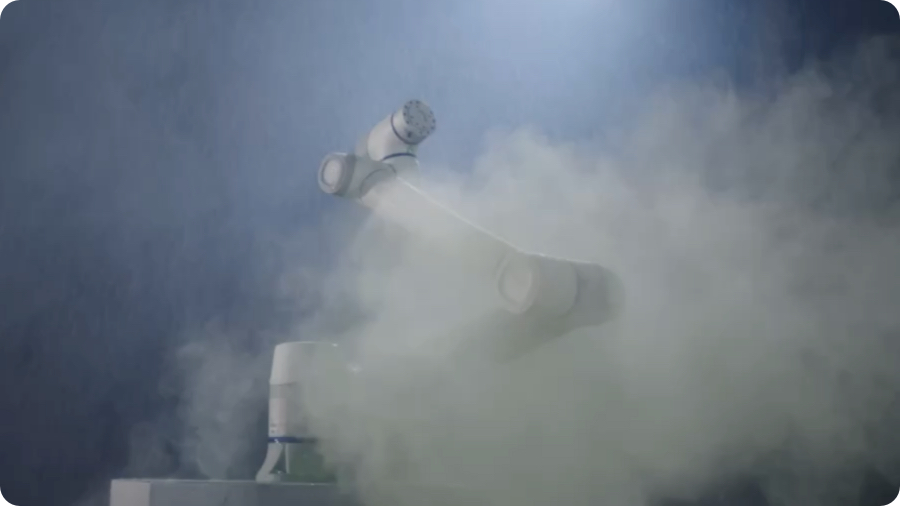

Anti-Dust Design
Handle the high dusty environment, prepare for such applications as cutting and grinding.
Oil Resistant, Perfect for Cutting Fluid
All exterior plastic components are made from fluororubber, known for its exceptional chemical stability and strong corrosion resistance.

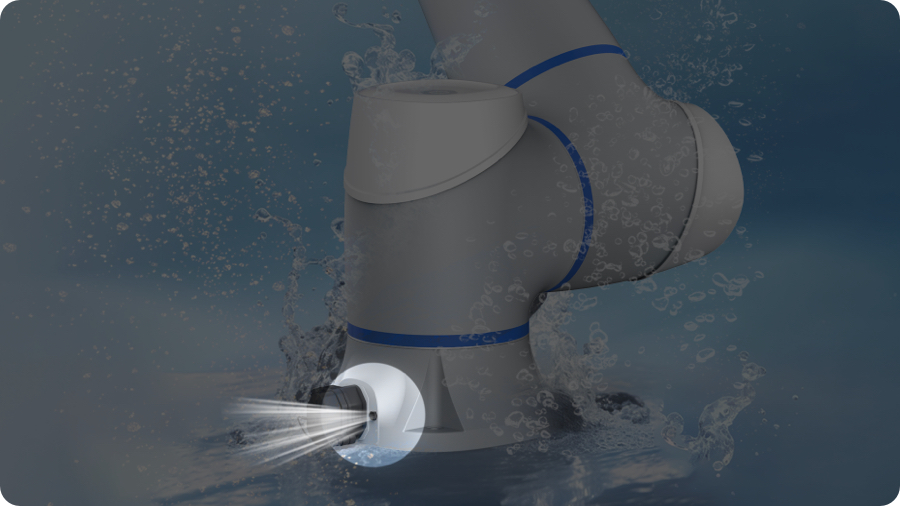

Internal Pneumatic System
Enables internal pressurization, ensuring positive pressure and enhancing the cobot's sealing capabilities.

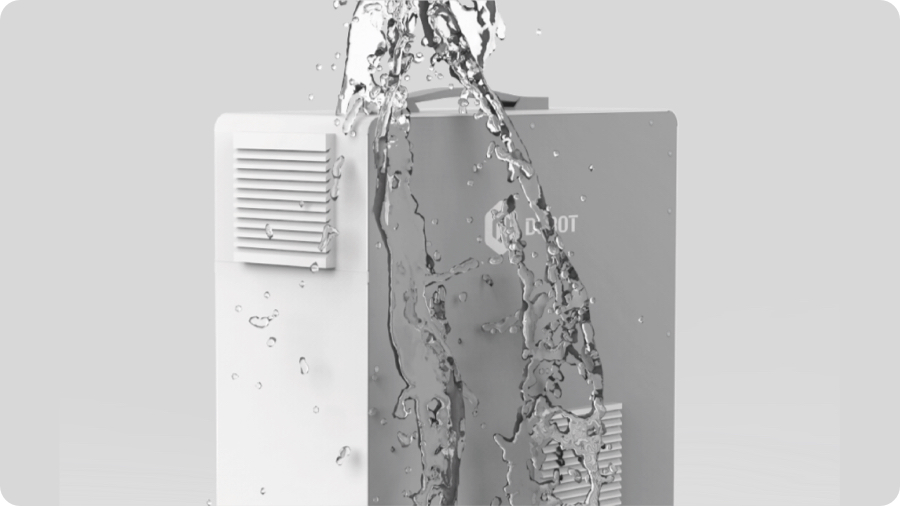

IP54 Waterproof Control Cabinet
To enhance safety and high adaptability in extreme conditions, the control cabinet adopts IP54 waterproof design, making the CRA-IP68 series fully capable of handling harsh tasks.

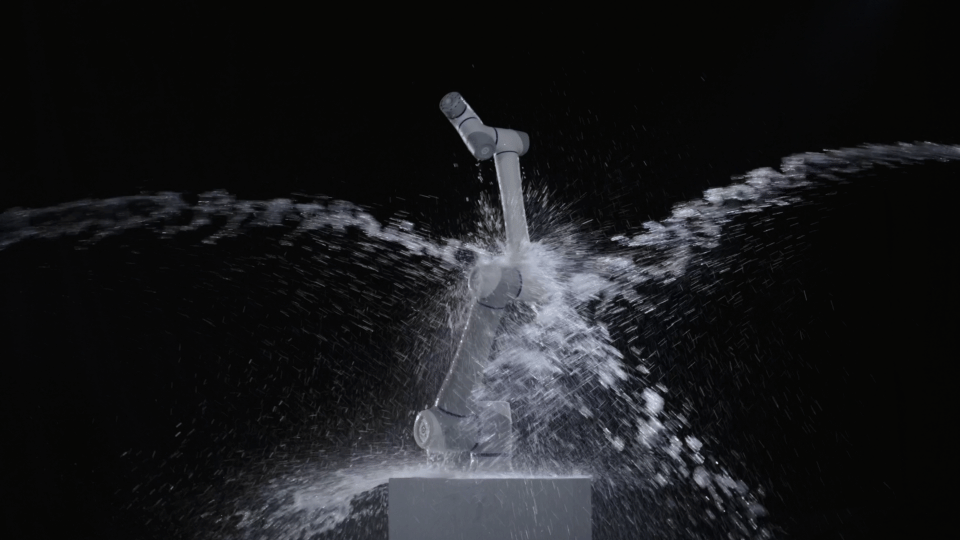

Perfect for High Humidity, Dusty, Water Mist Conditions

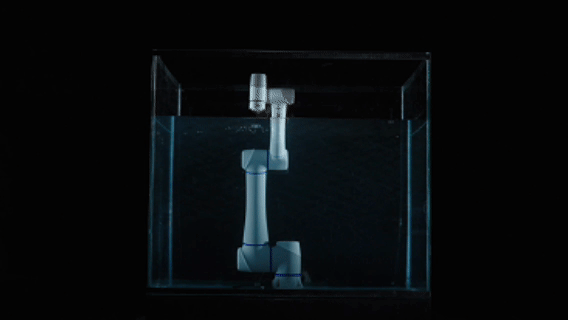

* Certified by SGS under IEC 60529, the robot passed a rigorous 72-hour test to meet IP68 waterproof standards.
* Not suitable for prolonged underwater use.
Stay Brilliant
The CRA-IP68 Series maintains the performance, functionality, reliability, and user-friendliness that the CRA series is celebrated for. The CRA-IP68 Series support drag-to-teach control, graphical programming, and code-based programming, no professional required, make automation accessible and easy.
- 2 m/s
- Maximum Linear Speed
- < 0.4 mm
- Positioning Accuracy
- Up to ±0.02 mm
- Repeatability Precision
