ECO-1000 EDGEBoost EnergyPack With Industrial-Grade Supercapacitors

• 8x/16x Industrial 370 Farads Supercapacitors
• Up to 200W Max. Power Output
• 1x COM, 1x USB for GUI Remote Management and Monitoring
• 2 IN / 2 OUT DIO
• -25°C to 55°C Wide Operating Temperature
• EN50155: EN50121-3-2, CE, FCC Class A, UL Certification
• 3x Smart Modes with Remote On/Off, Ignition Control, Delay Time
• 12V/24V Compatibility: Industrial PCs, Panel PCs, Displays

Smart Power Management – 3 Flexible Modes

Engineered for mission critical deployments, the ECO-1000 Series is configurable with 3 Smart Modes for intelligent power management. The smart modes leverage the ignition control, remote power on/off, and electrical sensors in the ECO-1000 to determine redundant power when it matters most.

• Normal Mode
• Ignition Mode
• Battery Mode

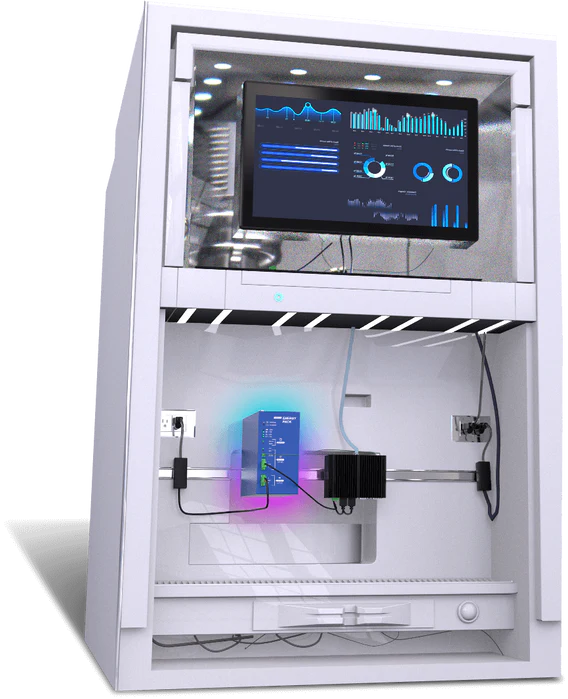

Mission Critical Back-Up With Supercapacitors

The ECO-1000 Series uses supercapacitor technology for self-sustaining power back-up for industrial/edge computers, displays, panel PCs, and other IIoT devices in mission-critical deployments.

• Mission Critical power with backup during loss of power
• Ensure safe shutdown for industrial computing workloads
• Mitigate data corruption and avoid detrimental downtime
• Streamline edge computing and IoT operational technology (OT) with robust automation

Modular EDGEBoost EnergyPack

The ECO-1000 Series is flexible and scalable to provide 370 Farads of stable power redundancy for mission-critical deployments at the rugged edge.

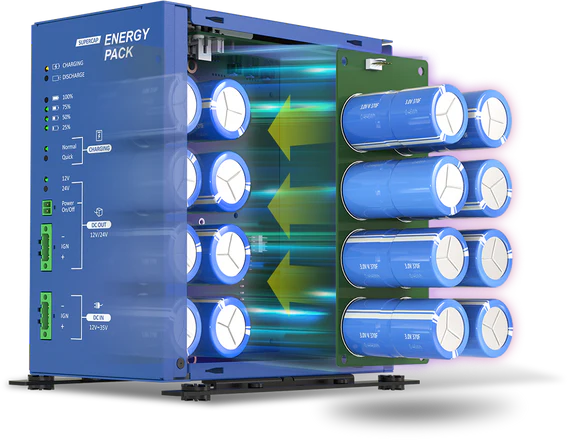

• 8x Supercapacitors with 100W Power Output

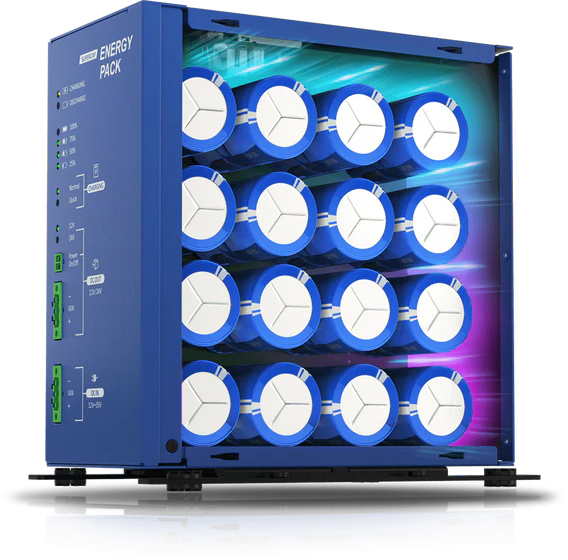

• 16x Supercapacitors with 200W Power Output
• 10 Years Lifetime and 500,000 Lifecycles
• Modular Supercapacitors Unit
• 370 Farads

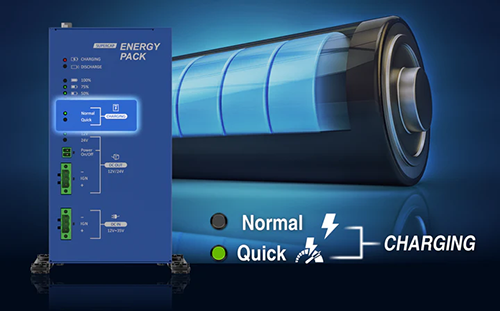

Quick And Normal Charge Modes

The ECO-1000 Series supercapacitor technology offers two charge options for energy replenishment and redundancy, a normal and quick charge mode.

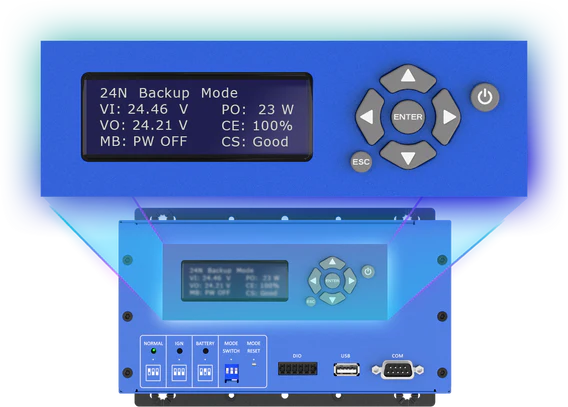

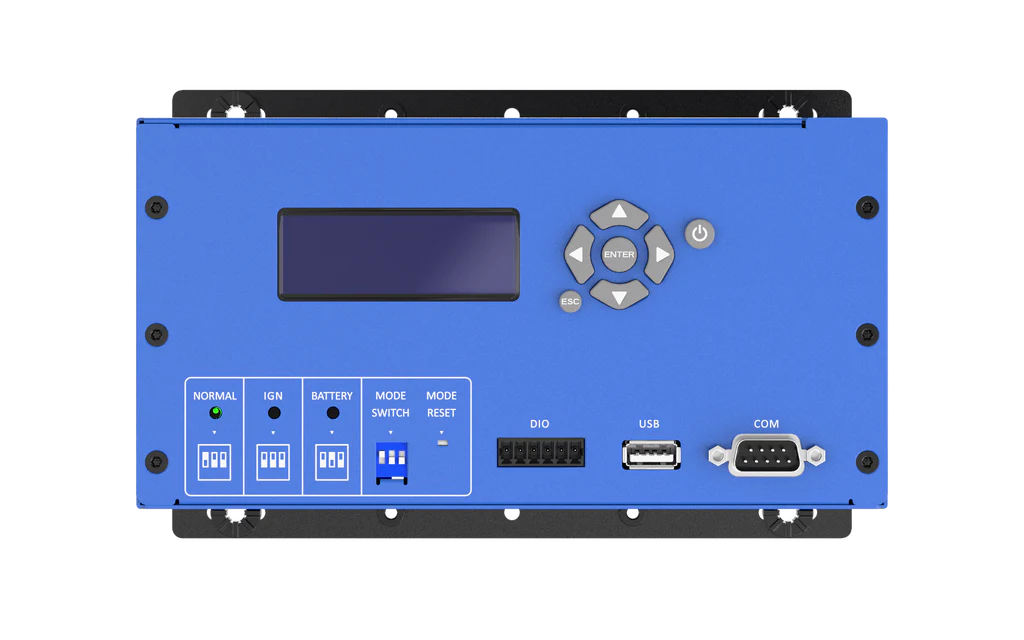

LCM Display Module And Button Control

The ECO-1000 Series can be configured with an optional LCD module and push button controls that enable user friendly on-site management

• LCD backlight display for critical status updates
• Push buttons enable on-site programmable settings

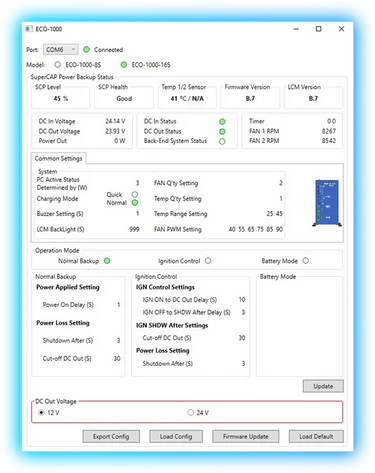

Interactive GUI For Remote Management

Streamlined management meets user-friendly convenience with an interactive GUI that enables remote management and monitoring by connecting effortlessly to a display through the ECO-1000's USB or COM ports

• USB and COM ports to enable GUI Remote Management and Monitoring

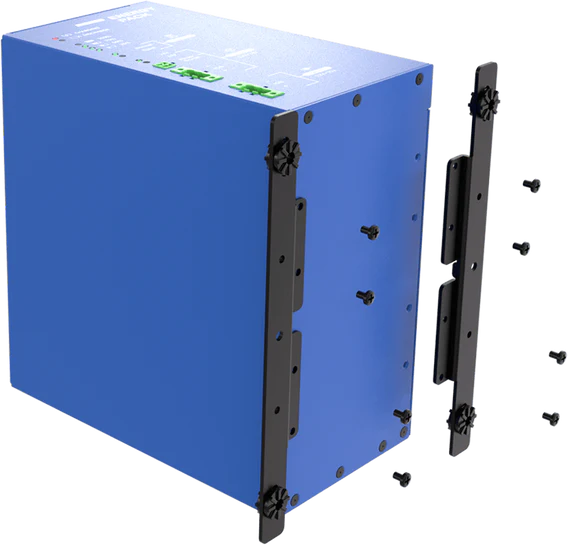

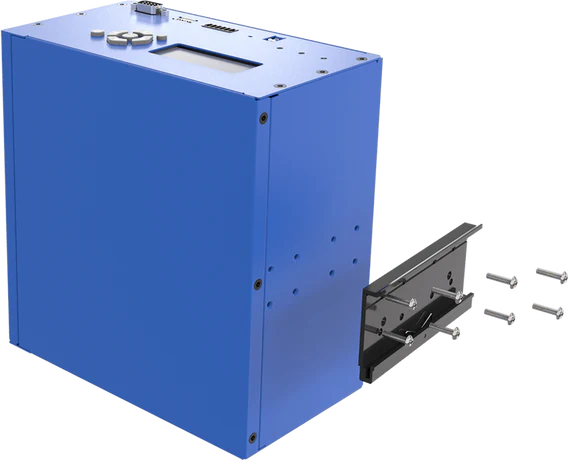

Flexible Mounting For Automation
