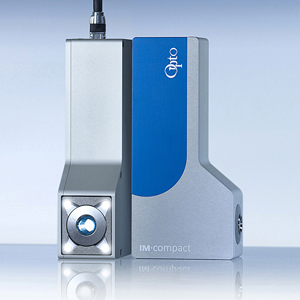

MACHINE VISION MICROSCOPE - Imaging Module IM•Compact
Model: IC-4351701UBE
Machine Vision Microscope IM series from Opto GmbH are Digital Microscopes for measuring instruments, analysis-, bio- or imaging systems, camera with integrated optics + light, Brightfield + darkfield in one unit, plug-and-play with measurement software, robust one wire, aluminium housing, USB3.1 with Sony IMX Pregius sensor, Long WD, high NA objectives for highest contrast + resolution
These Imaging Modules from Opto's 90° IM-compact M series are MACHINE VISION MICROSCOPES with FoV 3.8 x 2.8 mm and 4.5 x 3.8 mm, with integrated white coaxial and ring light illumination for optional use, as well as supplied control and possibly connected measurement software; Easy to integrate via a single cable with USB 3.0 C connection. Opto Imaging Modules are a family of integrated 'plug and play' imaging devices, with an optimized combination of onboard camera, optics, illumination and electronic control interface that together provide a perfect image. Designed for smart production and many 'Industry 4.0' applications, they significantly shorten system development times for machine builders and integrators. Technical details: with FoV 3.8 x 2.8 mm and 4.5 x 3.8 mm. WD 31mm Resolution LP/mm 270 Measuring resolution 1.8 µm / pixel Picture: monochrome or color Sony IMX265 sensor with 55 frames / sec. or Sony IMX264 sensor with 36 frames / sec. Advantages: - Perfectly optimized high-resolution image thanks to a closed, optimized design - Optically pre-calculated and tested by specialists, it enables the user to achieve perfect results without the need for deep optical knowledge. - Direct USB3 image output with one cable & compatibility with most image processing software packages (USB 3.1 USB Type C Connector) - Robust aluminium block design with versatile mounting options.
| FoV (mm) | WD (mm) | Sensor (MP) | Image | Interface | Light (white) | Item number |
| 4.5 x 3.8 | 31 | 5.04 | mono | USB 3.1 | coax + ring | IC-4352701UBE |
| 4.5 x 3.8 | 31 | 5.04 | color | USB 3.1 | coax + ring | IC-4352701UCE |
| 3.8 x 2.8 | 31 | 3.17 | mono | USB 3.1 | coax + ring | IC-4351701UBE |
| 3.8 x 2.8 | 31 | 3.17 | color | USB 3.1 | coax + ring | IC-4351701UCE |
| 2.3 x 1.9 | 36 | 5.04 | mono | USB 3.1 | coax + ring | IC-4352702UBE |
| 2.3 x 1.9 | 36 | 5.04 | color | USB 3.1 | coax + ring | IC-4352702UCE |
| 1.9 x 1.4 | 36 | 3.17 | mono | USB 3.1 | coax + ring | IC-4351702 UBE |
| 1.9 x 1.4 | 36 | 3.17 | color | USB 3.1 | coax + ring | IC-4351702UCE |
| 1.9 x 1.4 | 13 | 3.17 | mono | USB 3.1 | coax | IC-4251101 UBE* |
| 1.9 x 1.4 | 13 | 3.17 | color | USB 3.1 | coax | IC-4251101UCE* |
Dimensions (mm) 150 x 70 x 40 *150 x 88 x 40 Weight (kg): 05 incl. 18mm lens overhang
Steering and Measurement Software included CE / RoHS / WEE-Reg.-No. DE68564667
