OPTICS - IMAGING - AUTOMATION Opto manufacturers unique Compact embedded Imaging Modules with on board Camera/Lens/Light/Intelligence as one unit with one wire, ´plug and play` to machine builders and OEMs for industrial and biomedical applications. Opto reduces all solutions to their needs in Size, Weight, Price to add maximized Value for the Photonic and Machine Vision Markets.
Product filed under:
Optics / Lenses / Filters Optics / Lenses / Filters
Telecentric Camera Objective / Machine Vision

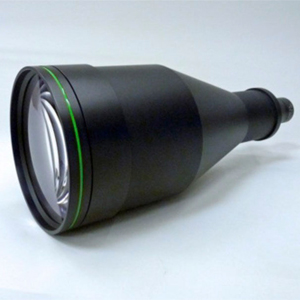

Model: Bi-Telecentric Lens 0.08x
The telecentric lens 100-BTC-008 has optical superior for provisions in high-exactness measuring machine vision and metrology to 0.08 X magnification with matrix up to 5 megapixel camera. It also has a cost/ quality proportion intriguing and can work with all cameras with a 2/3 utmost size of sensor. OEM variants could be created on determinations. It could be supplied with a noncompulsory clip connection suitable for DIN rail mounting for simplicity of conformity.
The point of interest of BTC Opto arrangement is to give optical Bi- Telecentric, article side , the target can imagine a three-dimensional item without lapse viewpoint , Polaroid side , it endures contrasts situating sensors . Twofold telecentric additionally permits a significant impediment vignetting. It could be supplied with a noncompulsory clip connection suitable for DIN rail mounting for simplicity of conformity.
Data Sheet: http://www.opto.de/media/100-btc-008_datasheet_02-15.pdf
Other Products from Opto GmbH
MACHINE VISION MICROSCOPE - Imaging Module IM•Compact
Machine Vision Microscope IM series from Opto GmbH are Digital Microscopes for measuring instruments, analysis-, bio- or imaging systems, camera with integrated optics + light, Brightfield + darkfield in one unit, plug-and-play with measurement software, robust one wire, aluminium housing, USB3.1 with Sony IMX Pregius sensor, Long WD, high NA objectives for highest contrast + resolution
