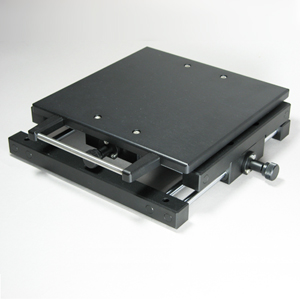

This manual positioning stage for microscopes is especially designed for controlling massive and large flat samples particularly electronic boards. It is characterized by its ergonomic design improving effective inspection operations.
This equipment is constructed in a solid and smooth structure that is equipped with X and Y locks.
Technical Features:
- for incident light
- compact gliding stage
- gliding area 100 x 100mm
- rubber feet for stable positioning on any surface-fixable in both directions with clamping screws
- resilient up to 10kg
- satisfies with solid construction and smooth running
- stage size 200 x 200mm
- maximal projection: 320x360 mm
- dimensions: 300 x 250 x 58mm
- weight: 3 kg
Article number 100-GS100-01
We also offer a manual positioning stage with a gliding area of 200 x 200mm available. Please contact us for further information.
