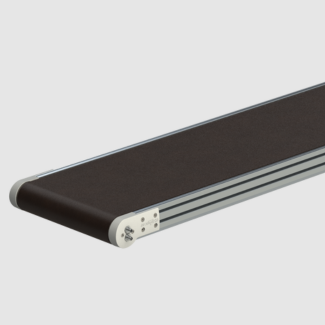

TB30 Single-Belt Conveyor

The TB30 single-belt conveyor stands as an optimal choice for a wide array of conveying applications across diverse industries. With its modular design, this conveyor serves as the foundation for tailored solutions that can be effortlessly adjusted or restructured in response to evolving conveying demands.

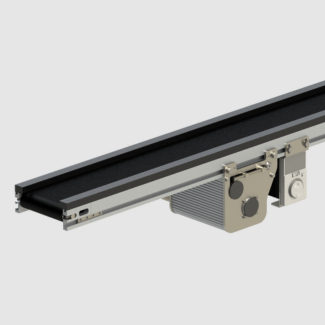

The central drive unit's position is adjustable, allowing fixation at any point along the chassis's free length. Additionally, the TB30 conveyor offers the option of a brushless DC motor for applications requiring variable speeds. This energy-efficient motor and drive system can be manually controlled via an external controller or digitally through I/Os. For fixed-speed operations, the TB30 comes equipped with a 3-phase AC motor operating at 3x460V/60 Hz (also available at 3x400V/50Hz).

Compared to conventional asynchronous geared motors, significant electricity and cost savings are achievable. For instance, utilizing the TB30 conveyor in continuous 3-shift operation throughout a year can result in savings of 512 kWh of electricity and approximately 235 USD.

Available in standard widths ranging from 4.13 to 9.84 inches and with a maximum length of 32.8 feet, the TB30 conveyor can be configured as single-belt or double-belt. Moreover, a tandem chassis version, driven by a single motor, is offered for transporting larger pallets and other dimensionally stable products.

With its versatile modular system, the TB30 belt conveyor facilitates easy customization and reconfiguration to meet the specific conveying requirements across various industries. Montech's belt conveyors ensure reliable and efficient transportation of goods in diverse industrial settings.

Delivery Time (subject to prior sale): 10-15 working days
