Montech Conveyors Corp. Product

Flat or Cogged Belt Conveyor SOLTB

Montech Conveyors Corp.

The SOLTB Conveyor features a customizable flat or cogged belt, adaptable lengths and widths, and easy belt replacement.

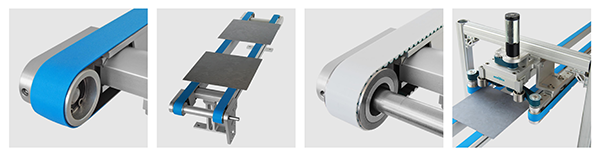

Image of Flat or Cogged Belt Conveyor SOLTB

The SOLTB Special Conveyor with flat or cogged belt stands out for its adaptability and efficiency in material handling. Tailored to customer specifications, its length and width can be customized to fit unique production setups. Offering versatility, it comes with the option of flat belts or toothed belts, catering to diverse material handling needs.

One of its key advantages is the ease of belt replacement, a process that can be seamlessly executed even while the conveyor is installed, minimizing downtime and maximizing productivity. Additionally, the SOLTB offers flexibility in configuration, with the head drive mountable on either the right or left side, enhancing adaptability to various layout requirements.

The SOLTB Special Conveyor combines customizable features with user-friendly design elements to deliver reliable and efficient material handling solutions for modern manufacturing environments

Montech Belt Conveyors


Technical Data

Weight SOLTB B=104 with 2 supports (without drive components):
Head drive weight (L = 500 mm) 3.66 lbs
Weight (additional 100 mm) 0.51 lbs
Each additional support 0.18 lbs

Weight SOLTB B=144 with 2 supports (without drive components):
Head drive weight (L = 500 mm) 3.79 lbs
Weight (additional 100 mm) 0.51 lbs
Each additional support 0.24 lbs

Required drive torque 0.5 Nm
Motor (motor bracket) prepared for Neugart gearhead PLE-40, Maxon gearhead GP32 A
Warranty period 2 years from the date of delivery
Installation position horizontal
Accessories: foot height according to customer specification
