Inxpect SPA Product

C203A: Control Unit 200 SERIES

Model: 90304011

Inxpect SPA

Digital I/O

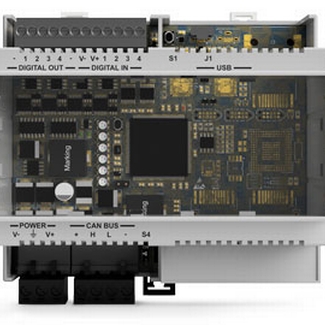

Image of C203A: Control Unit 200 SERIES

C203A provides basic but robust control functionality for any Inxpect safety radar sensor. The Inxpect Safety Application works via USB to configure the sensitivity levels, safety functions, size of detection fields, and the functionality of the I/O ports of the control unit.

USB
Local configuration option.

Digital inputs
Two dual-channel inputs supporting the following functions:
• muting signal
• emergency stop signal
• restart signal

Four Output Signal Switching Devices
As safety outputs: two dual-channel safety OSSDs.
As auxiliary outputs: four auxiliary outputs, which can be configured to signal restart feedback, fault, muting status.

Dynamic detection fields
All detection fields can be dynamically modified in real-time: up to two detection fields for Inxpect SRE 100 Series and up to four detection fields for Inxpect SRE 200 Series.

www.inxpect.com/products/C203A/
