Ideal for mobile indoor and outdoor applications

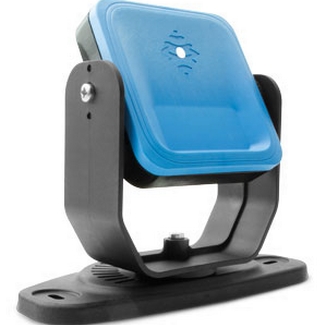

The S201A-MLR sensor operates in the millimeter wave V band (60 GHz) and it can detect complex scenes by analyzing the returned signals reflected by both static and moving objects in the operative range.
In addition to the dynamically selectable horizontal field of view and up to four alarm areas, S201A-MLR also supports higher speeds (4 m/s) and longer ranges (9 meters) than the base S201A model. The S201A-MLR is therefore ideal in sectors like earth moving, railway, mining and agriculture.
As an additional function, the target RCS can be chosen among different values:
• Human RCS (for the “standard” safety function)
• Selectable RCS (for preventing collision with other objects)
The sensors perform the following primary functions:
• Motion and scenario analysis.
• Communication to the control unit of processed motion data and diagnostic information.
• Static Object Detection: this new option allows to detect static objects in the area where the restart prevention safety function is activated. By doing so it prevents the mobile device from restarting when there are obstacles in the area.
Multi-area, dynamic-field 3D safety radar with extended range of 9 meters
0.5 - 5m
Horizontal Plane: 10-100°
Vertical Plane: 20°
5 - 9m
Horizontal Plane: 10-40°
Vertical Plane: 20°
The aperture of each field is dynamically adjustable in 10° increments over a range of 10° to 100° (between 0.5 and 5 m) and over a range of 10° to 40° (between 5 and 9 m).
