Since 1973, Infranor has been providing high-performance, high quality and customized servo solutions for various industries including mobile robots, machine tool, semiconductor, packaging, military, metrology, metal forming, flight simulators, and nuclear power.
Product filed under:
AC Brushless Motors, Motors, and Motors & Drives AC Brushless Motors, Motors, and Motors & Drives
Ultra premium efficiency motors for velocity-controlled applications.
.png)

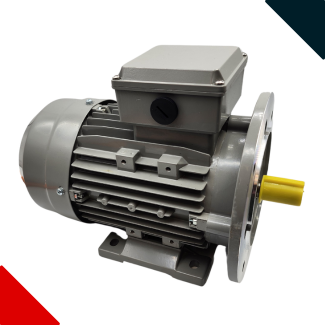

The MPM Series of motors combines the permanently excited synchronous design in a low-cost asynchronous housing. Utilizing its buried magnet rotor design (IPM: Integrated Permanent Magnet) and high efficiency, you can downsize by 1 to 2 frame sizes when compared to a similar AC Vector motor. These motors require a sensorless vector drive or VFD to operate. Our PACHP brushless servo drive can be used with the PPAC-21 firmware for sensorless operation. These motors have greater than 90% efficiency when paired with an inverter which reduces operating costs and produces a fast ROI. Cables are sold separately - HERE.
- Compact Size
- Constant Torque Through Full Speed Range
- Up to 4,000 RPM Standard
- Aluminum Housing
- Lots of Options
- Rated Power: 3 - 54 kW [4 - 72 HP]
- Center Height: 80 - 160 mm
- Winding: 320 - 600 Vdc + custom
- CE Certification
- UR Certification (Optional)
- ATEX Class 2
- Conveyor Systems
- Constant Speed / Power
- Machine Tool
- Vacuum / Blower
- Pumps
- Warehouse Automation
| Motor PN | Rated Torque (Nm) |
Rated Speed (RPM) |
Power (kW) [HP] |
Max Torque (Nm) |
Torque Constant *1 (Nm/Arms) |
# Poles | Efficiency *2 (%) |
Inertia (kg*m^2) |
|---|---|---|---|---|---|---|---|---|
| MPM80L (Star) | 12.5 | 2,300 | 3.0 [4.0] | 25 | 2.44 | 6 | 93.5 | 0.00405 |
| MPM80L (Delta) | 12.5 | 4,000 | 5.2 [7.0] | 25 | 1.41 | 6 | 93.6 | 0.00405 |
| MPM90LL (Star) | 27 | 2,300 | 6.5 [8.72] | 54 | 2.35 | 6 | 93.8 | 0.0075 |
| MPM90LL (Delta) | 27 | 4,000 | 11.3 [15.15] | 54 | 1.37 | 6 | 94.0 | 0.0075 |
| MPM112M (Star) | 45.3 | 2,300 | 10.9 [14.62] | 90.6 | 2.19 | 6 | 95.1 | 0.02486 |
| MPM112M (Delta) | 45.3 | 4,000 | 18.9 [25.35] | 90.6 | 1.27 | 6 | 95.2 | 0.02486 |
| MPM132M (Star) | 76.4 | 2,300 | 18.4 [24.68] | 152.8 | 2.60 | 6 | 95.5 | 0.0449 |
| MPM132M (Delta) | 76.4 | 4,000 | 32.0 [42.92] | 152.8 | 1.51 | 6 | 95.1 | 0.0449 |
| MPM160LB (Star) | 129.5 | 2,300 | 31.2 [41.84] | 259 | 2.43 | 6 | 96.0 | 0.116 |
| MPM160LB (Delta) | 129.5 | 4,000 | 54.0 [72.42] | 259 | 1.41 | 6 | 94.4 | 0.116 |
1: Torque Constant has a +/- 5 % variation from nominal value during manufacturing.
2: Efficiency values shown are with an inverter and are without harmonic components. The switching frequency used for testing was 4 kHz.
3: Custom windings are available.
