Easy Brushless Servo Drive Series

Infranor Inc.

Request a Quote

High current in a compact footprint with a competitive price tag.

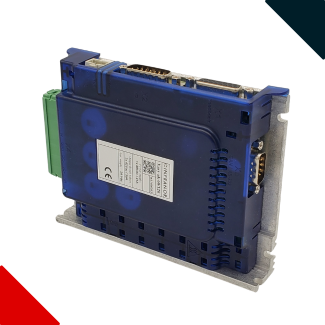

Image of Easy Brushless Servo Drive Series

The Easy series is a DC input high-current low voltage servo drive for three-phase rotary and linear servo motors. This is our most compact range of synchronous servo drives. This drive series comes in 2 frame styles, housed with a heatsink and PCB daughter board. These drives have multiple ways to be controlled including analog, discreet I/O, internal sequencer, RS232, and CANopen. Feedback options are nonproprietary and include sensorless, resolver, and incremental encoder with halls. Please visit our website for more up-to-date information and downloads - HERE.

Features
  • High Current
  • Very Compact
  • Easy Configuration / Setup
  • Open and Closed Loop Operation
  • Auto-tuning and Auto-phasing
Range
  • Bus Voltage: 24 - 60 Vdc
  • Cont. Current: 5 - 35 Arms
  • Frame Size 60 (L x H x W): 140 x 110 x 30 mm and 60 x 60 x 5 mm
Compliance
  • CE Certification



Applications
  • Standalone / Multi-axis
  • AGV / AMR Mobile Platforms

  • Robotics
  • OEMs



Drive Properties
Drive PN

Rated Input
Voltage (Vdc)

 Cont. Current
(Arms)		 Peak Current
(Arms)		 Cont. Power
(W)		 PWM Frequency
(kHz)

Power Supply
Needed?

 STO
Easy-##-60/10 24 - 60 5 10 350 8 Yes x1 SIL 2
Easy-##-60/20 24 - 60 10 20 700 8 Yes x1 SIL 2
Easy-##-60/60 24 - 60 25 60 1,750 8 Yes x1 SIL 2
Easy-##-60/120 24 - 60 35 120 2,450 8 Yes x1 SIL 2
Easy-##-60-DB 24 - 60 13 45 910 8 Yes x1 SIL 2
Easy-##-200/17 110 - 230 Vac x1 5 17 1,860 8 Optional x1 SIL 2

1: Continuous power is based on continuous current and rated voltage.




In this brief video, we go over the Easy series servo drives. We'll break down what makes them different and why you would choose one over the others.

Other Products from Infranor Inc.

FP Series (Slotless) Image

FP Series (Slotless)

Highest performance, great quality and plenty of options to solve your exact needs.

Continue

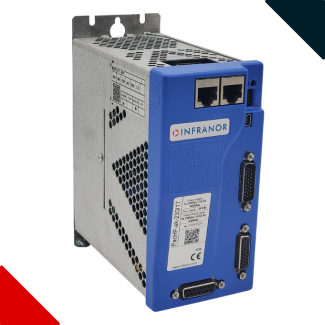

PACHP Brushless Servo Drive Image
