Since 1973, Infranor has been providing high-performance, high quality and customized servo solutions for various industries including mobile robots, machine tool, semiconductor, packaging, military, metrology, metal forming, flight simulators, and nuclear power.
Product filed under:
AC Brushless Motors, Motors & Drives, and Servo Motors AC Brushless Motors, Motors & Drives, and Servo Motors
Highest performance, great quality and plenty of options to solve your exact needs.
.png)
The FP series has a slotless stator design resulting in torque at faster speeds due to less losses with zero cogging. This is our most power-dense synchronous servo motor family. The motor series comes in 7 frame sizes ranging from 38 mm to 140 mm with multiple stack length options available. These motors are considered medium inertia making them perfect for larger load applications. This series can come with customized windings on top of the three standard choices (48, 320, and 600 Vdc). Feedback options are nonproprietary so these motors can be used with most third-party servo drives. Please visit our website for more up-to-date information and downloads - HERE.
- Slotless Stator (Zero Cogging)
- Highest Efficiency
- Modular Design
- Torque at faster speeds (>10,000 RPM)
- Customizable
- Stall Torque: 0.25 - 75 Nm
- Frame Size: 38 - 142 mm
- Winding: 48 - 600 Vdc
- CE Certification
- UR / cUR Certification
- Car / Flight Simulators
- Metrology
- Robotics
- Machine Tool
- Medical (Low Ferrous Content)
- Warehouse Automation
| Motor PN |
Stall Torque |
Rated Torque (Nm) |
Rated Speed (RPM) |
Rated Power (kW) [HP] |
Max Torque (Nm) |
Frame Size (mm) |
# Poles | Inertia (kg*cm^2) |
|---|---|---|---|---|---|---|---|---|
| FP0023 | 0.24 | 0.23 | 3,000 | 0.07 [0.09] | 1.44 | 38 | 4 | 0.033 |
| FP0034 | 0.40 | 0.38 | 3,000 | 0.12 [0.16] | 2.40 | 42 | 4 | 0.10 |
| FP0055 | 0.54 | 0.46 | 3,000 | 0.14 [0.19] | 3.24 | 57 | 8 | 0.20 |
| FP0105 | 1.0 | 0.90 | 3,000 | 0.28 [0.38] | 6.0 | 57 | 8 | 0.40 |
| FP0207 | 2.0 | 1.85 | 3,000 | 0.58 [0.78] | 12.0 | 70 | 8 | 1.30 |
| FP0307 | 2.7 | 2.54 | 3,000 | 0.80 [1.10] | 16.2 | 70 | 8 | 1.90 |
| FP0409 | 4.2 | 4.15 | 3,000 | 1.30 [1.74] | 25.2 | 90 | 8 | 4.80 |
| FP0609 | 5.6 | 5.12 | 3,000 | 1.61 [2.16] | 33.6 | 90 | 8 | 6.30 |
| FP0711 | 6.5 | 6.10 | 3,000 | 1.92 [2.58] | 39.0 | 110 | 8 | 11.6 |
| FP0911 | 9.0 | 8.20 | 3,000 | 2.58 [3.46] | 54.0 | 110 | 8 | 17.2 |
| FP1111 | 11.0 | 9.10 | 3,000 | 2.86 [3.84] | 66.0 | 110 | 8 | 22.8 |
| FP1311 | 13.2 | 10.75 | 3,000 | 3.38 [4.53] | 79.2 | 110 | 8 | 28.5 |
| FP1714 | 18.3 | 15.50 | 1,500 | 2.43 [3.26] | 109.8 | 140 | 8 | 60.2 |
| FP3314 | 31.5 | 27.50 | 1,500 | 4.32 [5.79] | 189.0 | 140 | 8 | 120.1 |
1: Rated Power is based on rated torque and speed and is not the max continuous power of the motor.
2: Custom windings are available for different bus voltages, data shown is for 320 and 600 Vdc windings.
Other Products from Infranor Inc.
.png)

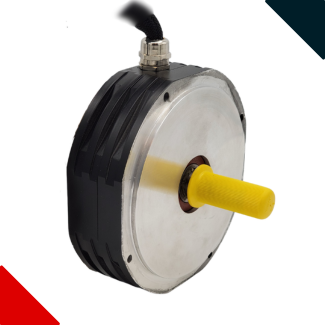

BR Series (Torque Motor)
