Cincoze DI-1100 Intel® 8th Gen. Core™ U Series Processor, High Performance and Power Saving Rugged Embedded Computer
| System | |
| Processor | • Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W • Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W • Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W • Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W • Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W • Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W 8th Generation Intel® Coffee Lake S Series CPU: • Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W • Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W • Intel® Core™ i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W • Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W • Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W • Intel® Core™ i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W • Intel® Pentium® G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W • Intel® Pentium® G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W • Intel® Celeron® G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W • Intel® Celeron® G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W |
| Chipset | Intel H310 Chipset |
| Memory | 1x DDR4 2666 MHz 260-Pin SO-DIMM Socket, Supports Up to 32 GB ( Un-buffered and non-ECC) |
| BIOS | AMI BIOS |
| Graphics | |
| Graphics Engine | • Integrated Intel® UHD Graphics 630: Core™ i7/i5/i3 • Integrated Intel® UHD Graphics 610: Pentium® /Celeron® |
| Maximum Display Output | Supports Dual Independent Display |
| DP | 1x DisplayPort Connector (4096 x 2304@60Hz) |
| VGA | 1x VGA Connector (1920 x 1200 @60Hz) |
| I/O | |
| LAN | • 2x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 |
| COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB | • 3x 5Gbps USB 3.2 Gen1, Type A • 3x 480Mbps USB 2.0, Type A |
| Expansion | |
| Mini PCI Express | 2x Full-size Mini-PCIe Socket |
| SIM Socket | 1x SIM Socket |
| M.2 | 1x M.2 Key E 2230 Socket, Support Intel CNVi Module |
| CMI (Combined Multiple I/O) Interface | • 1x CMI Interface for optional CMI Display Module Expansion • 2x CMI Interface for optional CMI I/O Module Expansion |
| CFM (Control Function Module) Interface | 1x CFM IGN Interface for optional CFM-IGN Module Expansion |
| Storage | |
| SSD/HDD | 1x 2.5" SATA HDD/SSD Bay (SATA 3.0) |
| mSATA | 2x mSATA Socket (SATA 3.0) |
| M.2 SSD | 1x M.2 Key M 2280 Socket, Supports SATA SSD (SATA 3.0) and NVMe PCIe |
| RAID | Do not Support RAID Function |
| Power Supply | |
| Input | 9 - 48VDC, 3-pin Terminal Block |
| Remote Power On/Off | 1 x Remote Power On/Off, 2-pin Terminal Block |
| Mechanical | |
| Dimensions | 224.1 x 162 x 64.2 mm |
| Weight | 2.22kg |
| Mounting | Wall / DIN-RAIL / VESA Mount |
| Environmental | |
| Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 60°C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 95%RH @ 70°C (non-Condensing) |
| Vibration | MIL-STD-810G |
| Shock | MIL-STD-810G |
Other Products from Industrial PC, Inc.

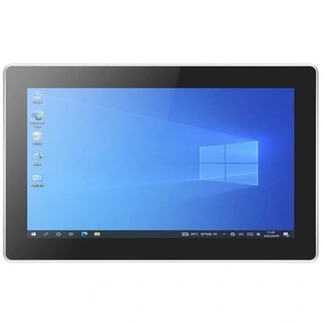

Geshem 21.5 Inch Intel Celeron J6412 Cableless Capacitive Panel PC
