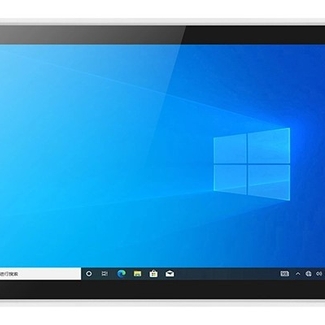

Geshem 21.5 Inch Intel Celeron J6412 Cableless Capacitive Panel PC

Benefits of 21.5 Inch Intel Celeron J6412 Cableless Capacitive Panel PC

• Intel® Elkhart Lake™ 11th Celeron J6412

• Industrial display, multi-point capacitive touch screen

• 1*DDR4 SO-DIMM,up to 16GB

• 4*USB3.0?4*RS232(One of them RS232/422/485 optional,default RS232)

• 1*HDMI?1*VGA(Internal pin)

• 2* Intel® Gigabit LAN, 1 of which supports Wake-on-LAN

• Fanless design

• Panel protection level can reach IP65

System Hardware CPU Memory Intel® Elkhart Lake™ 11th Celeron® J6412 1*DDR4 SO-DIMM memory slot, supporting up to 32GB Storage 1*M.2 2280 SLOT (SATA/Nvme(PCIeX1)interface type automatic recognition) 1*SATA HDD (7pin), supporting12V/5Vpowersupply Display LCD Type Touchscreen Max. Resolution 21.5″ LCD Capacitive touch screen 1920*1080 Luminance Contrast Ratio 250 cd/m2 1000: 1 OS OS Windows10/11?Linux I/O Ports USB COM LAN 4*USB3.0(4*USB2.0 built-in)(USB3.0-3?4 support 1.5A, 1?2 support 0.9A) COM1:1*RS232/422/485 jump cap optional (default RS232), supports 5V/12V/RI # optional; COM2/3/4: 1 out 3 serial port cables 1 out 1*RS232 and 2*RS485, or 1 out 3 serial port cables 2 out 3*RS232/485 jump cap options (default RS232); 2*RS232 built-in(need to customize export) 2*1000M LAN port Audio Video DC Port Mini PCIe SIM Card GPIO 1*4-section 3.5mmAudio Jack (supportsheadphone audio output and microphoneaudioinput); 1*Horn 8 ohms 3 watts 1*HD, 1*VGA pins can be customizedforexportPhoenix terminal 3pin 1*Mini PCIe(WiFi+BT/4G/5GOptional,Oneoutof three) 1*Built-in SIM card holder NADimensions: Power Power 10-32V wide voltage input, standard with 12V/5A adapter Environment Vibration Protection Shock Protection IP Rating 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration 10g acceleration, 11ms cycle Front panel IP65 Operating Temp. Storage Temp. Humidity -10?~55?(wide temperatureoptional)-30?~70?(wide temperatureoptional)95% @40?, non-condensingMechanical Dimension (WxHxD) Weight Color 538.5*330*58.7mm 6.5kg Silver Material Mounting Aluminum alloy VESA mounting: 100*100mmEmbedded installation: 524.5*316mm
