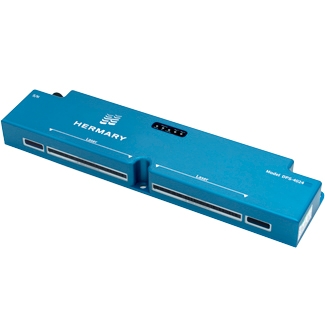

DPS-4024HA Ultra High Ambient Coplanar 3D Scanner

Incorporating two lasers and two cameras in a coplanar configuration, the DPS-4024HA is a 3D scanner with a large scan zone and a high scan rate. Housed in a rugged IP67 enclosure, DPS-4024HA outputs 3D geometric point cloud data as high as 1,000 scans per second. Its unique coded light adds an extra level of ambient light immunity, which enables DPS-4024HA to operate outdoors, reducing or even eliminating the need for shielding from direct sunlight. The scanner can be triggered by one of the following three settings: time, encoder or external (PLC). With Hermary's GIG-4PT Terminator Card, the scanning systems can be easily configured into multi-scanner arrays for either lineal or transverse scanning. Industry-standard Ethernet TCP/IP communications allow for simplified installation and maintenance.

Designed to scan logs entering the sawmill in a lineal scanning configuration, the DPS-4024HA 3D scanner is also used to scan logs entering plywood-veneer lathes.

Features:

• Ultra-high ambient-light immunity
• Dual profile coplanar scanner
• Large depth of field
• Scans up to 1,000 profiles per second
• Class 2 laser
• 3D geometric point cloud data
• TCP/IP over Ethernet
• IP67 enclosure

Benefits:

• No additional lighting or shielding needed
• Robust design for outdoor applications and works under direct sunlight
• Works well in high-production environments
• Dual scan zone for reduced occlusion
• Time-division multiplexing architecture supports multiple-scanner collaborations
• Compatible with Hermary's GIG-4PT platform

Specifications:

• Dimensions: 605 x 147 x 61 mm (23.8 x 5.8 x 2.4 inches)
• Weight: 9.3 kg (20.5 lb)
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Scan Rate: up to 1,000 scans per second
• Data Points per Scan (Profiles): up to 106
• Interface: Ethernet TCP/IP
• Electrical Supply: 24 VDC
• Enclosure Protection: IP67
