Conductix-Wampfler Product

Enduro+ Charging Contacts

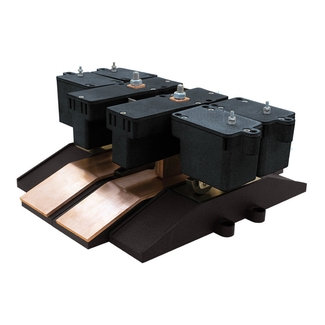

Image of Enduro+ Charging Contacts

The Enduro+ takes charging contacts innovation to the next level by scaling our technology to a 100-600amp solution for larger vehicles. With this addition to our charging contacts portfolio, you will experience more design flexibility, enhanced misalignment tolerance of 15mm in the x and y-axis, a higher charging rate, and a patent-pending shunt design that has been tested for over 1 million worry-free cycles. Enduro+ comes in three configurations: standard (100amp), wide (200amp), and long (200amp). In addition to a configurable footprint, both travel and power take-off are also configurable. Travel options include one-way, z-axis, and through travel. Power take-off can be located on the bottom, rear, or side.

The Enduro+ will be the ideal solution for the following market applications:

  • Manufacturing
  • Warehouse and Distribution
  • Automated Guided Vehicles (AGVs)
  • Automated Guided Carts (AGCs)
  • Autonomous Mobile Robots (AMRs)
  • Shuttles
  • Amusement Park Rides
  • Service Robots
  • Custom Engineered Configurations

Product Data:

  • Validated to exceed 1 million cycles
  • 100-600amp solution
  • Modular
  • Misalignment tolerance: 15mm x and y-axis
  • Higher charging rate
  • UL 583 recognized component
  • 60 VDC limit of UL 583 standard
  • Designed to meet 150 VDC
  • Canbus tested pilot solution
