Conductix-Wampfler Product
The Nano+ is an evolution of the original Nano model, offering an off-the-shelf, cost-effective solution at 25amp, 50amp, and 75amp
The Nano series is our compact charging contacts solution with up to a 75% smaller collector and up to a 66% smaller base place when compared to our competitors. Nano is a 20 - 300amp solution with the capability of being engineered to 600+ amps. With a chamfered edge design, the Nano Series ensures that only long-life wear-resistant components meet each other. The Nano Series Charging Contacts is a compact, modular design with a misalignment tolerance of 5mm in the x and y-axis. This solution is ideal for applications where space is a premium.
The Nano series will be the ideal solution for the following market applications (where space is limited):
- Manufacturing
- Warehouse and Distribution
- Automated Guided Vehicles (AGVs)
- Automated Guided Carts (AGCs)
- Autonomous Mobile Robots (AMRs)
- Shuttles
- Amusement Park Rides
- Service Robots
- Custom Engineered Configurations
Product Date:
- Design compliant with UL 2231-2 Standard for electric vehicle supply circuits
- 20 - 600 amp solution
- Single and two-phase systems
- Misalignment tolerance: x and y-axis 5 mm | Z-axis 2 mm
- Voltages up to 60 VDC / 25 VAC
- Optional pilot contacts
Other Products from Conductix-Wampfler

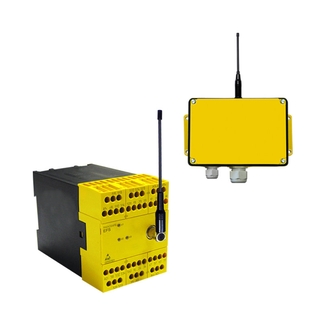

Jay RadioSafe Safety Stop System for Radio Remote Controls
