>10MP 25mm M12 Lens IR-Corrected
Model: CIL250-F2.0-M12A650, CIL250-F2.0-M12ANIR
The CIL250 is a 25mm M12 Lens (S-Mount Lens) for up to 1/1.7" 8MP sensors. The lens is IR Corrected, is F/2.0, and has a compact 30mm TTL.
IR Corrected 25mm M12 Lens
The CIL250 is a 25mm M12 Lens (S-Mount Lens) for up to 1/1.7" 8MP sensors. The lens is IR Corrected, is F/2.0, and has a compact 30mm TTL.
IR Corrected: IR Correction for use with RGBIR application and sensors such as the OX05B1S
Telephoto Field of View: A long 25mm EFL is suitable for machine vision and telephoto applications.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL250 |
| Format Type | 1/1.7" |
| EFL | 25mm |
| F# | 2.0 Fixed |
| Resolution | 8MP |
| Field of View | 20° @ 8.8mm Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 9.4mm |
| Distortion | <3% |
| Weight | 6g |
| IR Cut-Off Filter | P/N With: CIL250-F2.0-M12A650 P/N Without: CIL250-F2.0-M12ANIR |
| Construction | All-Glass |
Other Products from Commonlands LLC

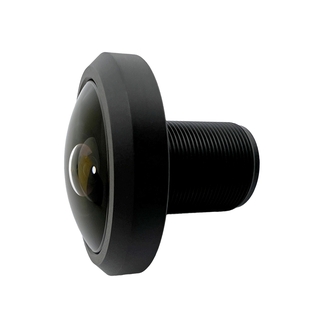

2mm Fisheye M12 Lens
The CIL216 is a 1.6mm miniature fisheye lens provides a 195° Field of View at 4.7mm Image Circle.
4mm F-theta Wide-Angle M12 Lens
The CIL340 is a wide-angle 4.0mm M12 lens provides 111° Horizontal Field of View on 1/1.8" sensors. The fast F/2.0, 0% FT distortion, and 8MP-12MP makes this lens optimal for high performance surveillance cameras using Sony's STARVIS sensors.
