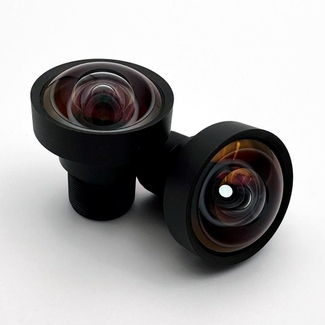

1mm Fisheye M12 Lens
Model: CIL213-F2.3-M12A660, CIL213-F2.3-M12ANIR
The CIL213 is a 1.2mm F/2.3 ultra-fisheye lens which provides 230° VFoV at 4.5mm image circle.
230°@4.5mm Fisheye M12 Lens
The CIL213 is a 1.2mm F/2.3 ultra-fisheye lens which provides 230° VFoV at 4.5mm image circle. The lens is ideal for high-end, miniature, 360° capture applications. The CIL213 is IP65 sealed.
230° FoV: Ultra-wide field of view of 230° FoV at 4.5mm image circle.
12MP+ Resolution: MTF suitable for 1/2.3" 12MP+ sensors such as the Sony IMX677.
IP65 Splash Resistance: IP65 sealed for dust and splash protection and direct exposure to elements.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL213 |
| Format Type | 1/1.8" |
| EFL | 1.2mm |
| F# | 2.4 Fixed |
| Resolution | 10-14MP |
| Field of View | 230° @ 4.5mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 4.5mm |
| Distortion | -9% F-Θ |
| Weight | 21.9g |
| IR Cut-Off Filter | P/N With: CIL213-F2.4-M12A660 |
| Construction | 10 Glass, Aluminum |
Mechanical Variants
| Variant | Description |
|---|---|
| "M12A" | IP65, BBAR on Lens 1 Surface 1, AL6061 Cap+Barrel |
Mechanical Layout
