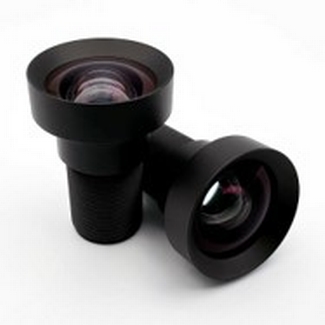

2mm Fisheye M12 Lens
Model: CIL216-F2.2-M12A650, CIL216-F2.2-M12ANIR
The CIL216 is a 1.6mm miniature fisheye lens provides a 195° Field of View at 4.7mm Image Circle.
195°@4.7mm Fisheye M12 Lens
The CIL216 is a 1.6mm miniature fisheye lens provides a 195° Field of View at 4.7mm Image Circle. The aperture of F/2.0 has good low light performance and still provides high resolution.
195° FoV: 195° FoV at 4.7mm image circle for a circular fisheye on 1/2.3" 4:3 sensors.
12MP+ Resolution: High MTF suitable for 1.3um pixels.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL216 |
| Format Type | 1/2.3" |
| EFL | 1.55mm |
| F# | 2.2 Fixed |
| Resolution | 14MP-16MP |
| Field of View | 195° @ 4.7mm Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 4.7mm |
| Distortion | -11% F-Θ |
| Weight | 13.5g |
| IR Cut-Off Filter | P/N With: CIL216-F2.2-M12A650 P/N Without: CIL216-F2.2-M12ANIR |
| Construction | Glass |
