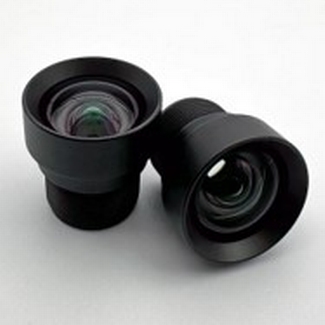

6mm No Distortion M12 Lens
Model: CIL062-F2.8-M12A650, CIL062-F2.8-M12ANIR, CIL062-F4.0-M12A650, CIL062-F4.0-M12ANIR
The CIL062 is a no distortion 6mm M12 Lens for up to 1/1.8" 6-8MP cameras. The hybrid glass/plastic design and small form factor make this a good high-quality option for budget-optimized projects.
No Distortion 6mm M12 Lens
The CIL062 is a no distortion 6mm M12 Lens for up to 1/1.8" 6-8MP cameras. The hybrid glass/plastic design and small form factor make this a good high quality option for budget-optimized projects.
Compact Form Factor: A 6mm M12 lens has FoV similar to a full frame format 35mm lens.
Large Format: Suitable for up to 1/1.8" 9.0mm image circle.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL062 |
| Format Type | 1/1.8" |
| EFL | 6mm |
| F# | 2.8 Fixed |
| Resolution | 6-8MP |
| Field of View | 55° @ 6.2mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 9.0mm |
| Distortion | <1% |
| Weight | 6g |
| IR Cut-Off Filter | P/N With: CIL062-F2.8-M12A650 P/N Without: CIL062-F2.8-M12ANIR |
| Construction | Hybrid Glass/Plastic with Aluminum Barrel |
Other Products from Commonlands LLC

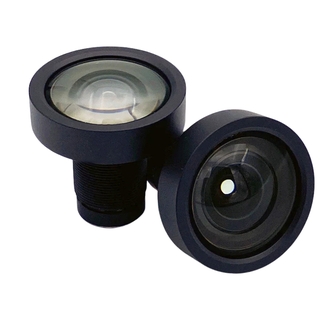

1/1.7 inch IR-Corrected Low Distortion 4.4mM12 Lens
The CIL046 is a 4.4mm M12 lens which provides a 86° Horizontal Field of View on 1/1.7" sensors, with no distortion. The lens is suitable for up to 10MP 1/1.7" sensors. Suitable for up to 10MP 1/1.7" cameras.

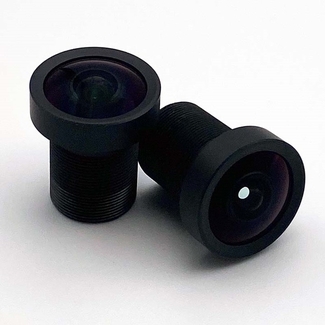

2.7mm Wide-Angle M12 Lens
The CIL327 is a 8MP wide-angle 2.7mm M12 lens which provides a 125° Horizontal Field of View on 1/2.6" sensors.
