2mm Fisheye M12 Lens
Model: CIL237-F2.2-M12A660, CIL237-F2.2-M12ANIR
The CIL237 is a 1.7mm M12 Fisheye Lens with 200°@5.5mm image circle, intended for sensors up to 5MP 1/2.5"
200°@5.5mm Fisheye M12 Lens
The CIL237 is a 1.7mm M12 Fisheye Lens with 200°@5.5mm image circle, intended for sensors up to 5MP 1/2.5" and 8MP 1/1.8". The small 19mm TTL form factor and hybrid glass-plastic design make this a cost-competitive high performance lens.
200° FoV: Maximize your camera's viewing angle with a 5.5mm image circle.
Short TTL: 19.0mm TTL for great size-performance-cost balance
F-Θ Distortion: <2% F-Θ distortion to 170° FoV for constant angular resolution.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL237 |
| Format Type | 1/3" to 1/1.7" |
| EFL | 1.7mm |
| F# | 2.2 Fixed |
| Resolution | 5MP 1/2.5"-8MP 1/1.8" |
| Field of View | 192° @ 5.4mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 5.5mm |
| Distortion | Special Distortion. See Spec. Less than 2% F-Θ to 5.0mm Im.Circ. -8% F-Θ @5.5mm Im.Circ |
| Weight | 5g |
| IR Cut-Off Filter | P/N With: CIL237-F2.2-M12A650 P/N Without: CIL237-F2.2-M12ANIR |
| Construction | Glass+Plastic, Metal |
Other Products from Commonlands LLC
1/2.5 inch 2mm Fisheye M12 Lens
The CIL324 is a 2.4mm wide-angle fisheye lens which provides a 205° Field of View at 7.3mm Image Circle. Fast F/1.9 and all-glass all-metal construction.

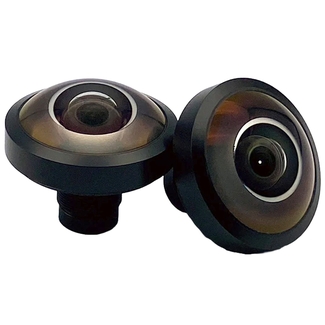

1mm Fisheye M12 Lens
