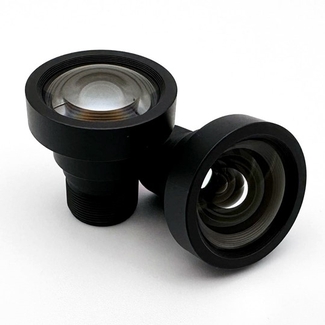

5.8mm Low Distortion M12 Lens
Model: CIL058-F2.2-M12A650, CIL058-F2.2-M12ANIR, CIL058-F4.0-M12A650
The CIL058 is a 5.8mm M12 lens which provides a 68° HFoV on 1/1.7" type sensors like the IMX334.
Low Distortion 5.8mm M12 Lens
The CIL058 is a 5.8mm M12 lens which provides a 68° HFoV on 1/1.7" type sensors like the IMX334.
Large Format: A large >9.3mm image circle with good relative illumination to the corners.
Low Distortion: Less than 2% TV distortion using all glass elements.
All Glass All Metal: Good Thermal stability with an intricate 9G all-metal design.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL058 |
| Format Type | 1/1.7" |
| EFL | 5.8mm |
| F# | 2.2 Fixed |
| Resolution | 6-8MP |
| Field of View | 74° @ 8.5mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 9.5mm |
| Distortion | <1.5% TV |
| Weight | 12.2g |
| IR Cut-Off Filter | P/N With: CIL058-F2.2-M12A650 P/N Without: CIL058-F2.2-M12ANIR |
| Construction | 9 Glass with Aluminum Barrel |
Other Products from Commonlands LLC

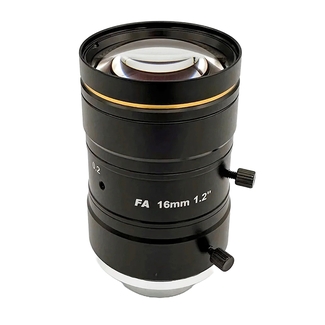

1.2 inch 25MP 16mm C-Mount Lens
