1/2.5 inch 2mm Fisheye M12 Lens
Model: CIL324-F1.9-M12B650, CIL324-F1.9-M12B660, CIL324-F1.9-M12BNIR
The CIL324 is a 2.4mm wide-angle fisheye lens which provides a 205° Field of View at 7.3mm Image Circle. Fast F/1.9 and all-glass all-metal construction.
200°@7.2mm Fisheye M12 Lens
The CIL324 is a 2.4mm wide-angle fisheye lens which provides a 205° Field of View at 7.3mm Image Circle. The fast F/1.9 and all-glass all-metal construction makes this lens ideal for computer vision applications.
Low F/#: Fast F/1.9 for great low-light performance and framerate.
200° FoV: Ultra-wide field of view for surround-view applications.
Ingress Protected: "B" Version is IP69K for external dust and waterproofing.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL324 |
| Format Type | 1/2.5" |
| EFL | 2.4mm |
| F# | 1.9 |
| Resolution | 2-3MP |
| Field of View | 180° @ 6.6mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 7.25mm |
| Distortion | -14% F-Θ |
| Weight | 7.4g |
| IR Cut-Off Filter | Optional |
| Construction | All Glass, Aluminum |
Other Products from Commonlands LLC
2/3 inch 12MP 35mm C-Mount Lens
The CIL535 is a 35mm C-Mount lens for up to 2/3" 12MP Cameras, 2.1um-2.74um pixel pitch.

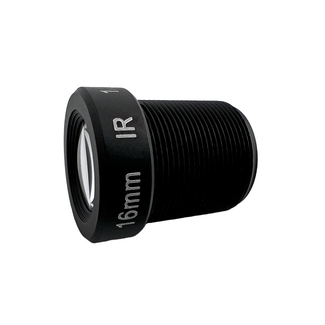

>1/2 inch 16mm IR-Corrected M12 Lens
