Commonlands LLC Product

3mm Wide-Angle M12 Lens

Model: CIL327-F1.5-M12A660, CIL327-F1.5-M12ANIR, CIL327-F1.8-M12A660, CIL327-F1.8-M12ANIR

Commonlands LLC

The CIL327 is a 8MP wide-angle 2.7mm M12 lens which provides a 125° Horizontal Field of View on 1/2.6" sensors.

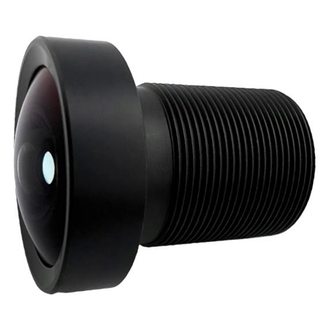

Image of 3mm Wide-Angle M12 Lens

Wide-Angle 2.7mm M12 Lens

The CIL327 is a 8MP wide-angle 2.7mm M12 lens which provides a 125° Horizontal Field of View on 1/2.6" sensors. The fast F/1.8 aperture makes this lens great for computer vision and low-light applications.

Low F/#: Fast F/1.5 and F/1.8 options for great low-light performance and framerate.

Thermal Stability: All-Glass All-Metal Design for Good Thermal Stability

Ingress Protection: "A" Mechanical Variant is IP69K rated for outdoor facing cameras.

Lens Parameter Performance Detail
Part Number CIL327
Format Type  1/2.5"
EFL 2.7mm
F#  1.5 or 1.8 Fixed
Resolution  F/1.5: 3MP
 F/1.8: 8MP
Field of View 125° @ 5.6mm image circle
Calculate for your sensor using our M12 Lens Calculator
Image Circle 7.1mm~7.2mm
Distortion -8% F-Θ
Weight 7.4g
IR Cut-Off Filter P/N With: CIL327-F1.8-M12A650
P/N Without: CIL327-F1.8-M12ANIR
Construction All Glass, Aluminum
