Commonlands offers high-performance cost-effective M12 lenses, C-Mount Lenses, and related accessories. ISO9001 Certified. Volume discounts. Worldwide shipping. Lenses used with Raspberry Pi HQ cameras.
Product filed under:
Optics / Lenses / Filters Optics / Lenses / Filters
14.2mm Telephoto M12 Lens
Model: CIL142-F2.6-M12A650, CIL142-F2.6-M12ANIR, CIL142-F4.1-M12A650
The CIL142 is a 14.2mm M12 lens for up to 12MP+ 1/1.8" sensors.
Telephoto 14.2mm M12 Lens
The CIL142 is a 14.2mm M12 lens for up to 12MP+ 1/1.8" sensors. This lens is originally optimized for finite conjugate imaging, making it good for machine vision applications.
Telephoto FoV
High Resolution
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL142 |
| Format Type | 1/1.7" |
| EFL | 14.4mm |
| F# | 2.6 or 4.1 Fixed |
| Resolution | F/2.6: 12MP (1.85um) F/4.1: 8MP (2.1um) |
| Field of View | 28° @ 6.2mm Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 9.3mm |
| Distortion | <0.7% |
| Weight | 4.3g |
| IR Cut-Off Filter | Optional |
| Construction | All-Glass |
Other Products from Commonlands LLC
1/1.8 inch 8mm M12 Lens Wide-Angle
The CIL080 is a 8mm M12 lens which provides 70° Diagonal Field of View on 1/1.8" sensors. The fast F/1.8 and 12MP+ resolution makes this lens optimal for robotics applications and surveillance cameras.

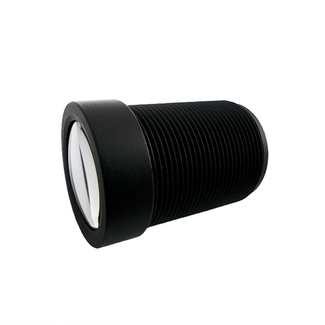

1/2.5 inch 18mm M12 Lens Telephoto
The CIL178 is an 18.4mm M12 Lens for up to 2MP 1/2.5" sensors. The short TTL and low F/2.0 make this lens fit into a unique optical design space. Short TTL TTL of 20mm is great for a compact telephoto camera design.
