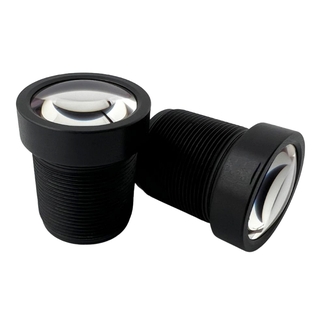

>1/1.7 inch 16mm Telephoto M12 Lens
Model: CIL160-F1.9-M12A650, CIL160-F1.9-M12A660, CIL160-F1.9-M12ANIR, CIL160-F2.8-M12A650, CIL160-F2.8-M12ANIR, CIL160-F4.0-M12A650, CIL160-F4.0-M12ANIR, CIL160-F5.6-M12A650, CIL160-F5.6-M12ANIR
The CIL160 is a 16mm M12 lens which provides a 22° Horizontal Field of View on 1/2.3" image sensors.
Telephoto 16mm M12 Lens
The CIL160 is a 16mm M12 lens which provides a 22° Horizontal Field of View on 1/2.3" image sensors.
Telephoto FoV: Comparable to a 100mm lens on 35mm full frame DSLRs, when used on 1/2.3" sensor.
All-Glass All-Metal: Thermally stable performance for outdoor applications.
High Resolution: Suitable for up to 10MP+ 1/1.7"" sensors.
| ens Parameter | Performance Detail |
|---|---|
| Part Number | CIL160 |
| Format Type | 1/1.7" |
| EFL | 16mm |
| F# | 1.9 Fixed |
| Resolution | 12MP |
| Field of View | 22° @ 6.2mm Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 9.3mm+ |
| Distortion | <0.5% TV |
| Weight | 6.1g |
| IR Cut-Off Filter | P/N With: CIL160-F1.9-M12A650 P/N Without: CIL160-F1.9-M12ANIR |
| Construction | All-glass all-metal |
Other Products from Commonlands LLC

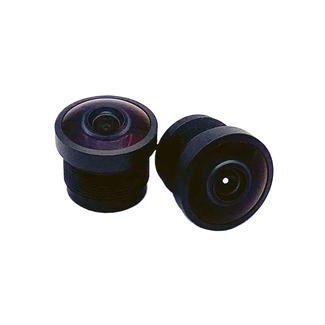

3mm M12 Lens Low Distortion
The CIL027 is a 2.7mm wide-angle low-distortion M12 lens which provides a 99° Horizontal Field of View on 1/2.3" sensors. Wide-Angle FoV: Achieve a wide 100° HFoV on 1/2.3" type sensors. Thermal Stability: Optical Resolution suitable for IMX178.
6mm M12 Lens Large Format
The CIL056 is a 5.5mm M12 lens which provides a 64° HFoV on 1/2.3" type sensors like the IMX477. This board lens can be used on up to 1/1.7" sensors and has a small form factor. A 16.8mm Total Track
