3.3mm Small No Distortion M12 Lens

Model: CIL036-F2.2-M12A650, CIL036-F2.2-M12ANIR

Commonlands LLC

Request a Quote

The CIL036 is a 3MP no distortion 3.3mm miniature M12 lens which provides a 77° Horizontal Field of View on 1/2.7" sensors. The short 16.6mm TTL makes it great for compact computer vision cameras.

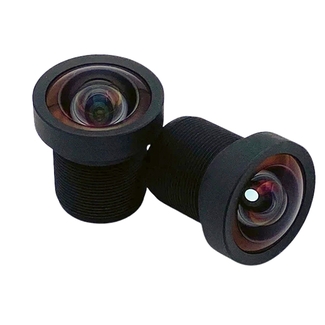

Image of 3.3mm Small No Distortion M12 Lens

Lens Parameter Performance Detail

Part Number     CIL036

Format Type      1/2.7"

EFL                        3.3mm

F#                          2.2 Fixed

Resolution          5MP+

Field of View     88° @ 6.2mm

                               Calculate using our FoV Calculator

Image Circle      7.2mm

Distortion           <1% TV

Weight                4g

Construction     Hybrid Glass/Plastic, Aluminum

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.
