4mm Wide-Angle M12 Lens

Commonlands LLC Product

Member Since 2022

Commonlands offers high-performance cost-effective M12 lenses, C-Mount Lenses, and related accessories. ISO9001 Certified. Volume discounts. Worldwide shipping. Lenses used with Raspberry Pi HQ cameras.

Product filed under:

Optics / Lenses / Filters Optics / Lenses / Filters

Request a Quote

4mm Wide-Angle M12 Lens

Model: CIL335-F1.8-M12A660, CIL335-F1.8-M12ANIR

Commonlands LLC

Request a Quote

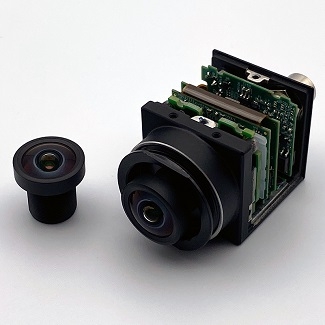

The CIL335 is a 12MP wide-angle 3.5mm M12 lens which provides a 105° Horizontal Field of View on 1/2.3" sensors. The fast F/1.8 aperture makes this lens great for computer vision and low-light applications.

Wide-Angle 3.5mm M12 Lens

F/1.8: Fast F/1.8 for superb low-light performance

>130° FoV: For a High Performance Wide-Angle Camera.

All-Glass All-Metal: Athermal all-glass all-metal construction.

Lens Parameter Performance Detail

Part Number CIL335

Format Type 1/2"

EFL 3.5mm

F# 1.8

Resolution 8MP

Field of View 103° @ 6.2mm

Calculate using our FoV Calculator

Image Circle 7.9mm

Distortion -5% F-Θ

Weight 6.5g

Construction 7G

Click here for full documentation.

An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.
