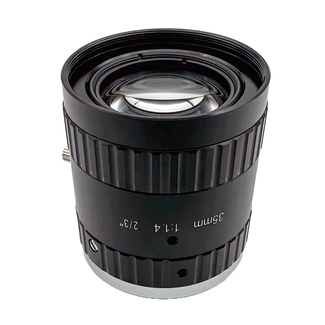

The CIL526-F1.5-CMANIR is a fast 35mm C-Mount lens for up to 5MP 2/3" sensors with 3.45um pixel pitch.
35mm C-Mount Lens 2/3" 5MP
The CIL526-F1.5-CMANIR is a fast 35mm C-Mount lens for up to 5MP 2/3" sensors with 3.45um pixel pitch. The aperture is adjustable from F/1.5 to F/16 and the lens has a minimum working distance of 200mm.
5MP-8MP Resolution: Suitable for 3.45um pixel pitch at F/1.4 and 2.74um at F/2.8
Low F#: An fast maximum F# of F/1.4 for demanding high speed machine vision applications.
| Lens Parameter | Specification |
|---|---|
| Part Number | CIL526 |
| Format Type | 2/3" |
| EFL | 16mm |
| F# | CMA: 1.5 - 16 Adjustable |
| Resolution | 5MP (3.45um) |
| Field of View | 67° @ 11mm~ Calculate FoV and Angular Resolution |
| Image Circle | 12.5mm |
| Distortion | -0.8% from Rectilinear |
| Weight | 64g |
| Filter | M37.5x0.5 |
| Working Distance | 200mm~infinity |
| Construction | All Glass |
Other Products from Commonlands LLC
>25MP 35mm C-Mount Lens Adjustable Aperture
The CIL555 is a 35mm C-Mount lens for up to 25MP 1.2" sensor format type with pixel pitch of 2.74um such as IMX541. The aperture of F/2.8 is adjustable to F/16.

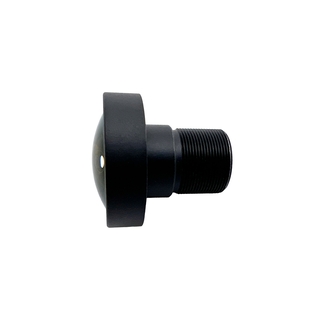

3mm Fisheye M12 Lens
