1/2.7 inch 2.1mm Stereographic M12 Lens

Model: CIL821-F2.4-M12B650, CIL821-F2.4-M12ANIR, CIL821-F2.4-M12BNIR

Commonlands LLC

Request a Quote

The CIL821 is a 6MP+ 2.1mm miniature S-Mount lens which provides a 125° Horizontal Field of View on 1/2.8" sensors. It's compact form factor and high resolution make it ideal for OEM applications such as doorbell cameras.

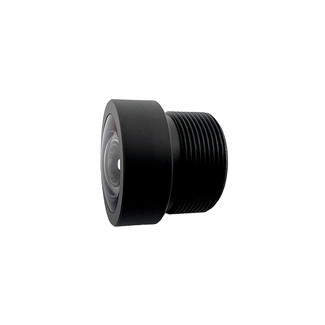

Image of 1/2.7 inch 2.1mm Stereographic M12 Lens

Small 2.1mm M12 Lens

The CIL821 is a 6MP+ 2.1mm miniature S-Mount lens which provides a 125° Horizontal Field of View on 1/2.8" sensors. It's compact form factor and high resolution make it ideal for OEM applications such as doorbell cameras.

Wide-Angle FoV: >145° FoV w/ stereographic distortion comparable to sports action camera lenses.

 4K Resolution: Optical resolution suitable for 12MP+ sensors up to 1/2.7" in format.

Compact Size: A short TTL of 15mm is ideal for weight and size-constrained applications.

Lens Parameter Performance Detail

Part Number     CIL821

Format Type      1/2.7"

EFL                        2.1mm

F#                          2.4 Fixed

Resolution          10MP+

Field of View     126° @ 5.4mm

                               Calculate using our FoV Calculator

Image Circle      6.7mm

Distortion           <20% TV

Weight                4.0g

Construction     Hybrid Glass/Plastic with Aluminum Barrel

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

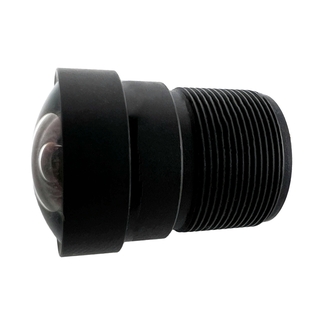

1/2 inch 4mm M12 Lens 16MP+ Image
