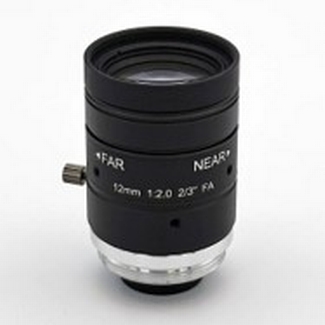

The CIL532 is a 12mm C-Mount Lens for up to 2/3" cameras with 12MP and 2.1um pixel pitch.
12mm C-Mount Lens 2/3" 12MP
The CIL532 is a 12mm C-Mount Lens for up to 2/3" cameras with 12MP and 2.1um pixel pitch. The adjustable F/2.0-F/16 aperture, compact form factor, and adjustable focus makes it great for machine vision cameras.
High Resolution: Suitable for 2.1um pixel pitch at F/2.4 for demanding applications.
Adjustable Aperture: Adjustable F2.0-F/16 aperture to optimized depth of field of your system.
Finite Conjugate Optimized: Achieve crystal clear images from 100mm to infinity without field curvature.
| Lens Parameter | Specification |
|---|---|
| Part Number | CIL532 |
| Format Type | 2/3" |
| EFL | 12mm |
| F# | 2.05 - 16 Adjustable |
| Resolution | 12MP+ (1.85m) |
| Field of View | 49° @ 11mm |
| Image Circle | 11mm+ |
| Distortion | 0% from Rectilinear @ 0.5m |
| Weight | 61g |
| Filter | M27x0.5 |
| Working Distance | 0.15m~infinity |
| Construction | All Glass |
Other Products from Commonlands LLC

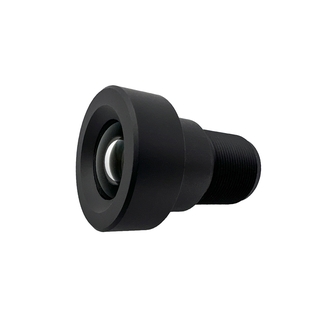

1/2 inch Low Distortion 7mm M12 Lens
