> 25MP 50mm C-Mount Lens Adjustable Aperture

Model: CIL556-F2.8-CMANIR

Commonlands LLC

Request a Quote

The CIL556 is a 50mm C-Mount lens for up to 25MP 1.2" sensor format type with pixel pitch of 2.74um such as IMX541. The aperture of F/2.8 is adjustable to F/16.

Image of > 25MP 50mm C-Mount Lens Adjustable Aperture

50mm C-Mount Lens 1.2" 25MP

The CIL556 is a 50mm C-Mount lens for up to 25MP 1.2" sensor format type with pixel pitch of 2.74um such as IMX541. The aperture of F/2.8 is adjustable to F/16.

25MP Resolution: Suitable for 2.74um pixel pitch sensors

Adjustable Aperture: An F/2.8-F/16 adjustable aperture allows for optimized performance

Lens Parameter Performance Detail

Part Number     CIL556

Format Type      1.2"

EFL                        50mm

F#                          2.8 - 16 Adjustable

Resolution          25MP (2.74um)

Field of View    17° @ 19.4mm

                              Calculate FoV and Angular Resolution

Image Circle      19.4mm

Distortion           -0.02% from Rectilinear

Weight                96g

Construction     All Glass

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

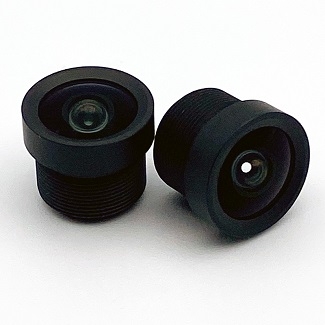

2mm Fisheye M12 Lens F-Theta Image
